LGW2W471MELC45 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 450volts 470uF Snap-In

Download LGW2W471MELC45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGW2W471MELC45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

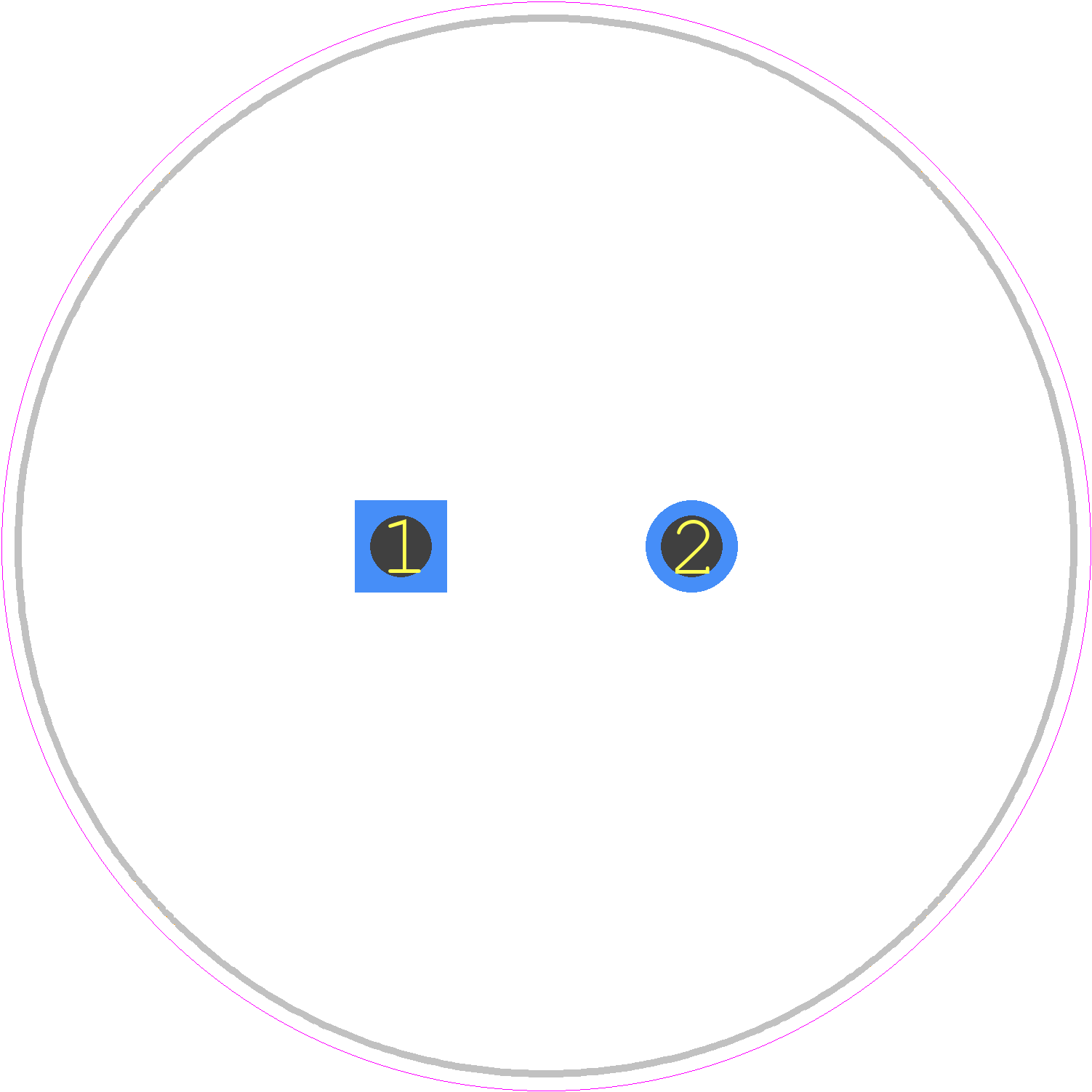

LGW2W471MELC45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGW (35 x 45)
click to zoom
3D Models
LGW2W471MELC45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGW (35 x 45)
click to zoom

LGW2W471MELC45 Details

  • Manufacturer Part Number:

    LGW2W471MELC45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.37 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    CYLINDRICAL

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    2670 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGW2W471MELC45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 3 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGW2W471MELC45 is designed to withstand high vibrations and can be used in applications where vibration is a concern.
  • Yes, the LGW2W471MELC45 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the LGW2W471MELC45 can be obtained from Nichicon Corporation or a authorized distributor, as it is not typically provided in the datasheet.
  • The LGW2W471MELC45 has a maximum operating temperature of 125°C, but it can be used in high-temperature applications with proper derating and consideration of the capacitor's characteristics.
