LGX2D102MELA45 - Nichicon

Description: Nichicon 1000μF 200 V dc Aluminium Electrolytic Capacitor, GX Series 5000h 25 (Dia.) x 45mm

Download LGX2D102MELA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2D102MELA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

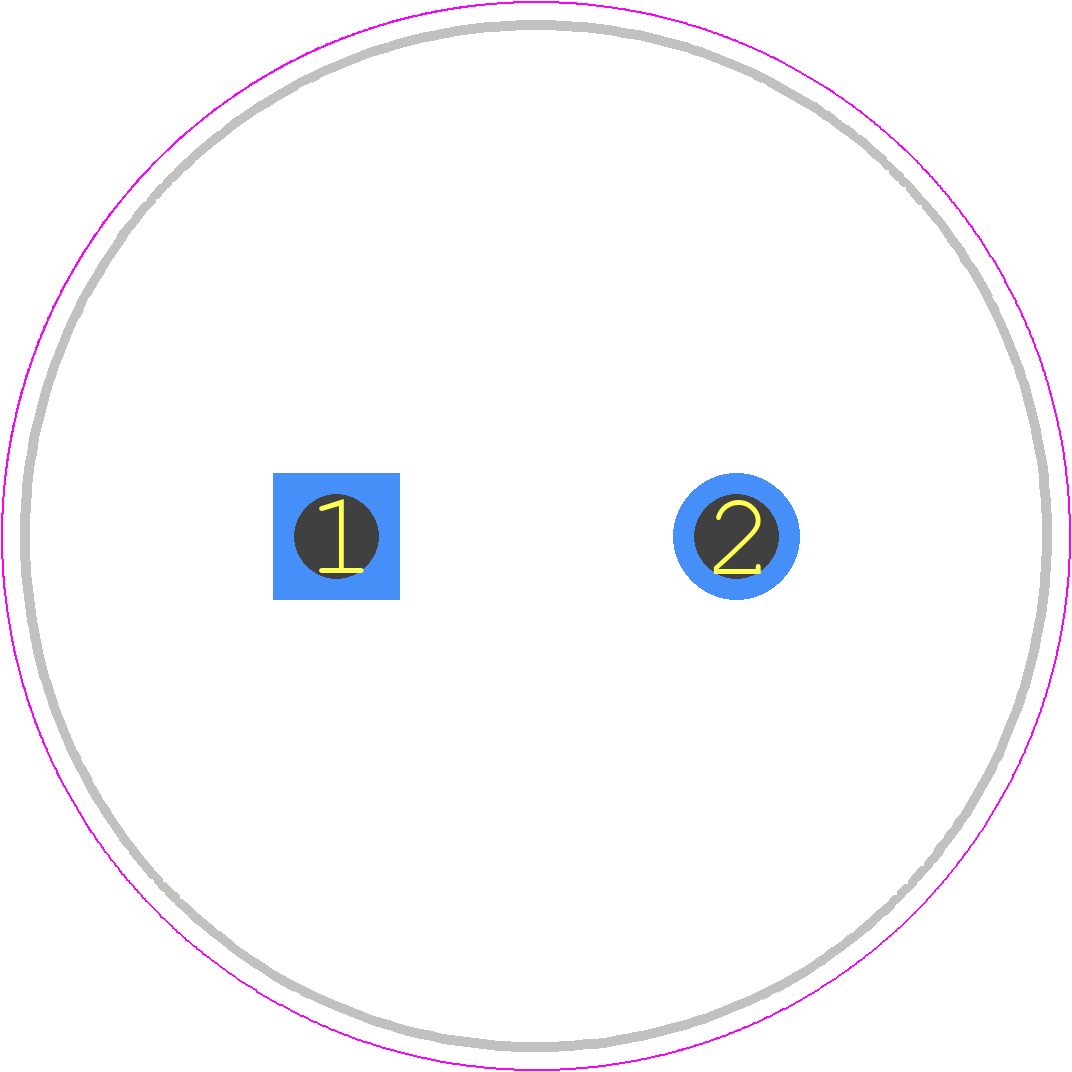

LGX2D102MELA45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom
3D Models
LGX2D102MELA45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25mm x 45mm
click to zoom

LGX2D102MELA45 Details

  • Manufacturer Part Number:

    LGX2D102MELA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.34 mA

  • Length:

    45 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    2350 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2D102MELA45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 30 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
  • Yes, the LGX2D102MELA45 is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
  • The LGX2D102MELA45 has a moisture sensitivity level (MSL) of 2, which means it can withstand exposure to moisture and humidity. However, it's still recommended to follow proper storage and handling procedures to prevent moisture absorption.
  • The ESR of the LGX2D102MELA45 is not explicitly stated in the datasheet, but it's typically around 10-20 mohms for this type of capacitor. You can contact Nichicon Corporation or a authorized distributor for more information.
  • The LGX2D102MELA45 is rated for operation up to 105°C (221°F). While it can withstand high temperatures, it's essential to derate the capacitor's voltage and capacitance according to the temperature derating curve provided in the datasheet.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGX2D102MELA45 Overview

Use the download button to access the LGX2D102MELA45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2D, or try a keyword search, such as Aluminum Electrolytic Capacitors
