The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGX2G471MELB45 is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude, and 3 hours per axis (IEC 60068-2-6). However, it's recommended to perform additional testing to ensure the capacitor meets the specific requirements of your application.
The ESR of the LGX2G471MELB45 is 0.02Ω at 100kHz, which is relatively low. A low ESR ensures that the capacitor can handle high-frequency switching and reduces energy losses, making it suitable for high-performance applications.
Yes, the LGX2G471MELB45 is compliant with the RoHS (Restriction of Hazardous Substances) directive and the REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulation, making it suitable for use in environmentally friendly and sustainable designs.
It's recommended to store the LGX2G471MELB45 in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and a relative humidity of 60% or less. Avoid storing the capacitor in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGX2G471MELB45 Overview

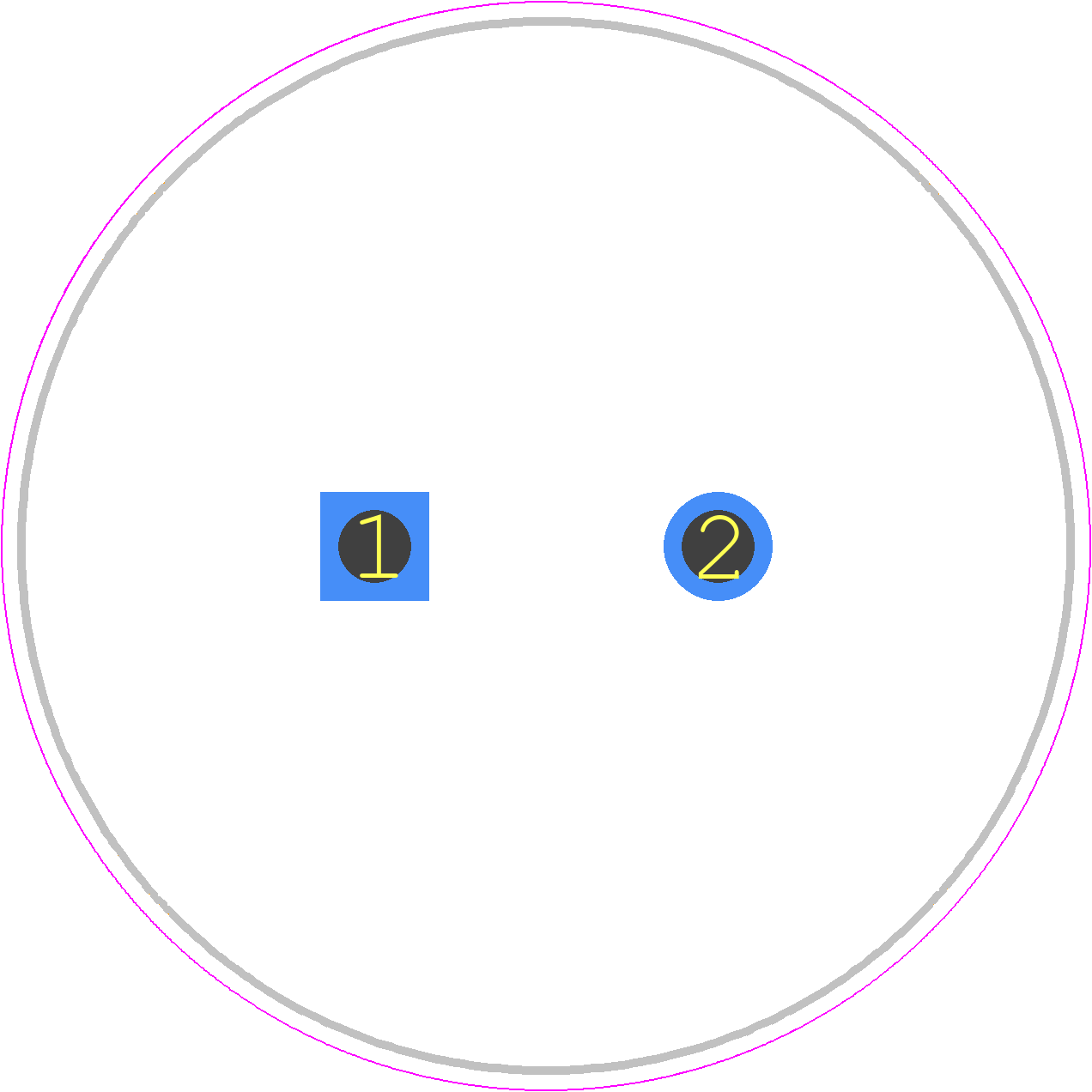

Use the download button to access the LGX2G471MELB45 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
