LGX2H271MELB50 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 270uF 500 Volts 20%

Download LGX2H271MELB50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2H271MELB50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

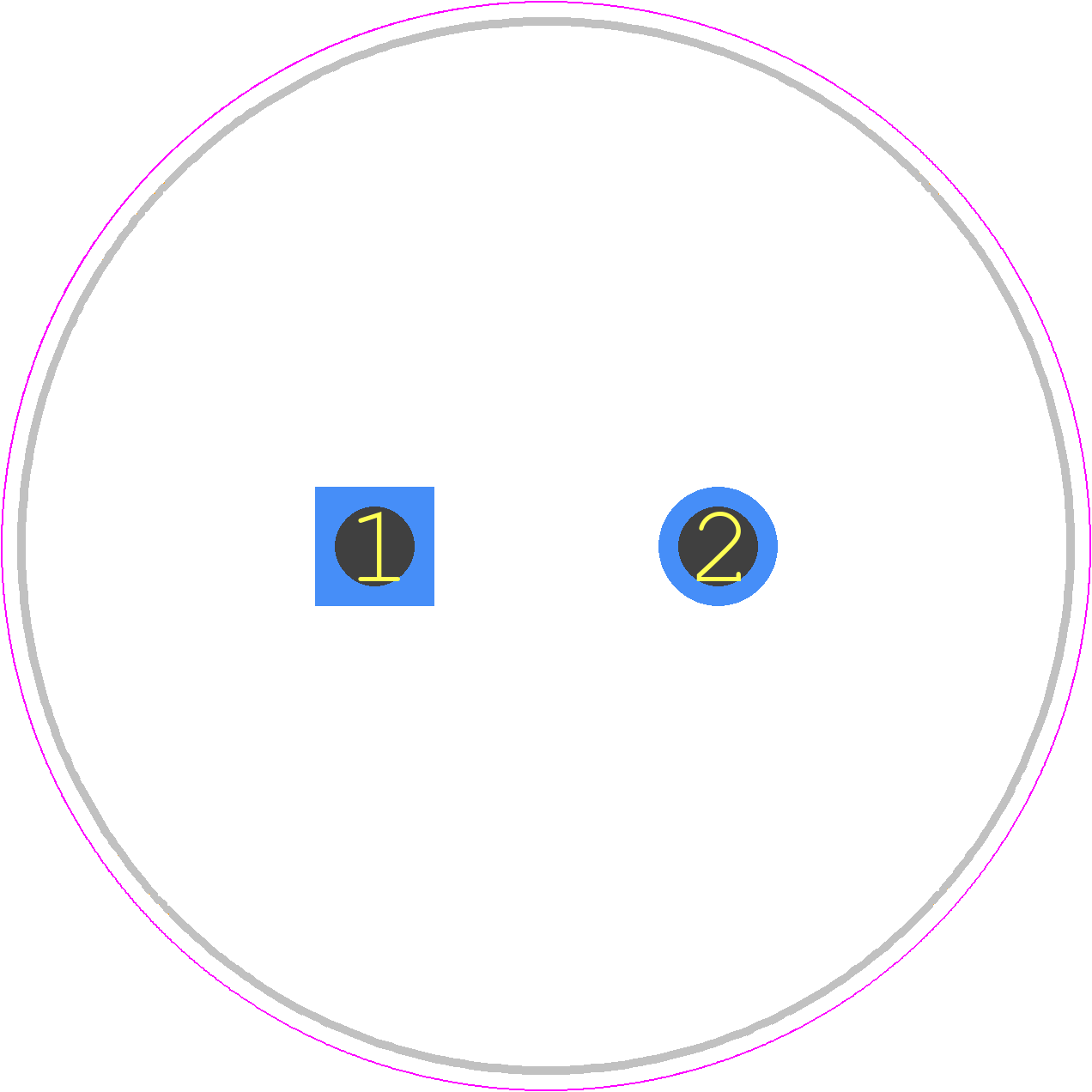

LGX2H271MELB50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGX2H271MELB50-
click to zoom
3D Models
LGX2H271MELB50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGX2H271MELB50-
click to zoom

LGX2H271MELB50 Details

  • Manufacturer Part Number:

    LGX2H271MELB50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    270 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1 mA

  • Length:

    50 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    1500 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2H271MELB50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGX2H271MELB50 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, and cadmium above the specified limits.
  • The ESR of the LGX2H271MELB50 capacitor is not explicitly stated in the datasheet, but it is typically around 0.02 ohms for an aluminum electrolytic capacitor of this type and size.
  • While the LGX2H271MELB50 capacitor is designed to be reliable, it is not specifically designed for high-vibration environments. If you need a capacitor for a high-vibration application, you may want to consider a capacitor with a more robust design, such as a capacitor with a specialized vibration-resistant construction.
  • The shelf life of the LGX2H271MELB50 capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGX2H271MELB50 Overview

Use the download button to access the LGX2H271MELB50 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LGX2H, or try a keyword search, such as Aluminum Electrolytic Capacitors
