LGX2W271MELC30 - Nichicon

Description: Nichicon 270μF 450 V dc Aluminium Electrolytic Capacitor, GX Series 5000h 35 (Dia.) x 30mm

Download LGX2W271MELC30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2W271MELC30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

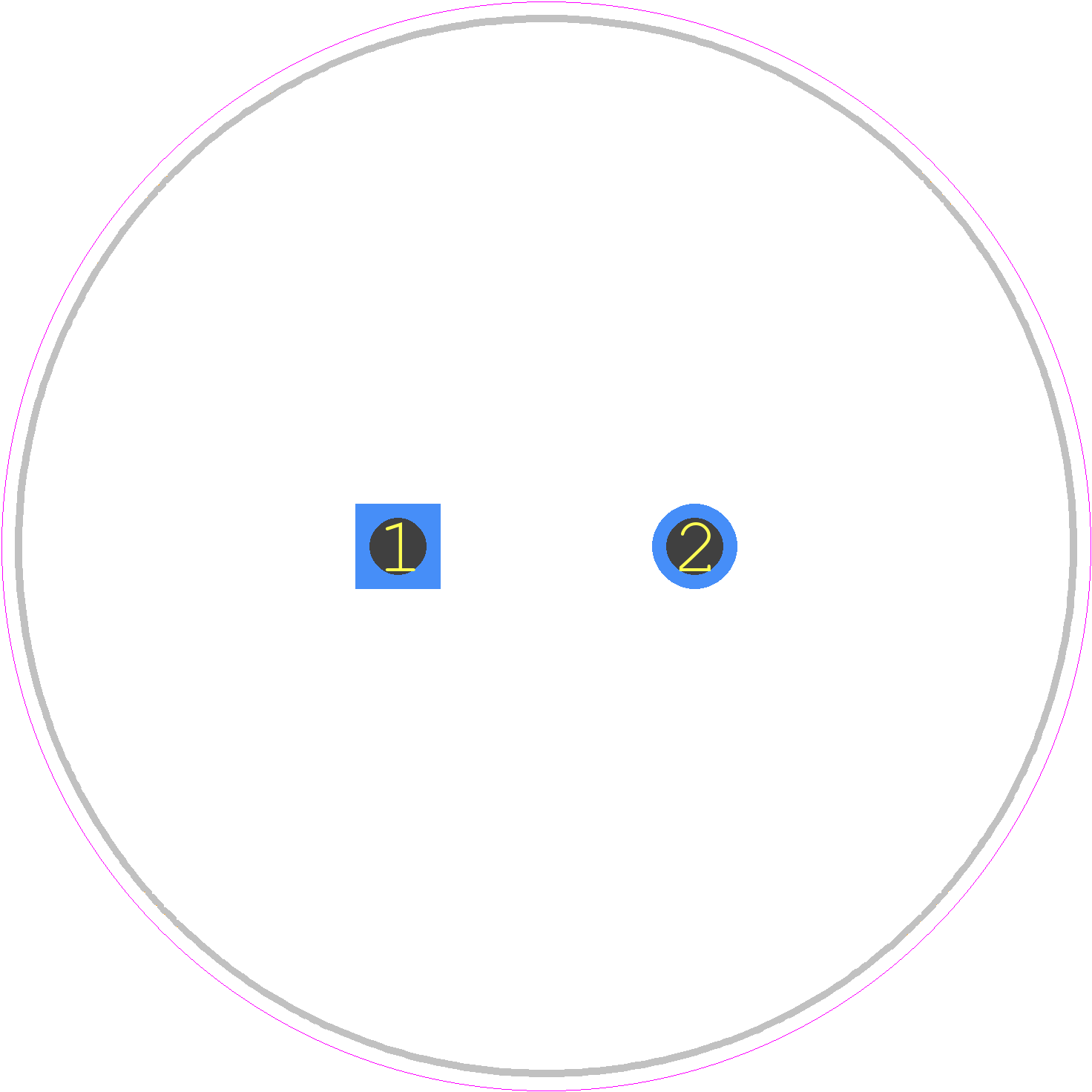

LGX2W271MELC30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGX2W271MELC30
click to zoom
3D Models
LGX2W271MELC30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGX2W271MELC30
click to zoom

LGX2W271MELC30 Details

  • Manufacturer Part Number:

    LGX2W271MELC30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    270 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.04 mA

  • Length:

    30 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1240 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2W271MELC30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LGX2W271MELC30 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LGX2W271MELC30 capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • The LGX2W271MELC30 capacitor is designed to withstand vibrations up to 10 Hz to 2000 Hz, 10 mm double amplitude, but it's recommended to consult with the manufacturer or a reliability engineer to ensure the capacitor can meet the specific vibration requirements of your application.
  • The shelf life of the LGX2W271MELC30 capacitor is typically 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitor remains within its specifications.
