LGX2W471MELC45 - Nichicon

Description: Nichicon 470μF 450 V dc Aluminium Electrolytic Capacitor, GX Series 5000h 35 (Dia.) x 45mm

Download LGX2W471MELC45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGX2W471MELC45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

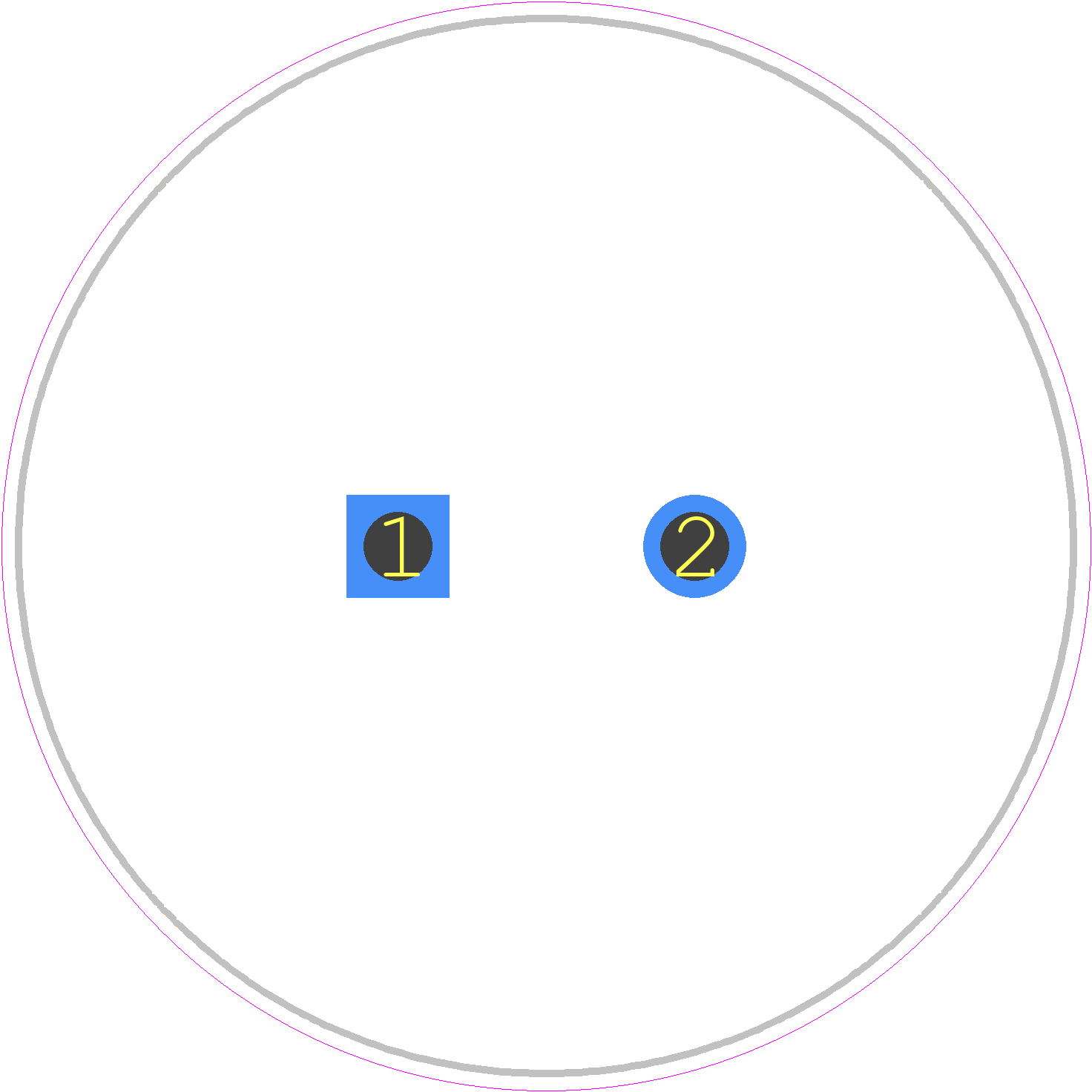

LGX2W471MELC45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LGX_D35_L45
click to zoom
3D Models
LGX2W471MELC45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LGX_D35_L45
click to zoom

LGX2W471MELC45 Details

  • Manufacturer Part Number:

    LGX2W471MELC45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.37 mA

  • Length:

    45 mm

  • Mounting Feature:

    CHASSIS MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Screw Ends

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1830 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    BINDING POST

LGX2W471MELC45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LGX2W471MELC45 is designed to withstand vibrations up to 10G, making it suitable for use in high-vibration applications.
  • The LGX2W471MELC45 is rated for operation up to 125°C, but its capacitance and ESR may degrade at high temperatures. Consult the datasheet for specific temperature derating information.
  • Yes, the LGX2W471MELC45 is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant designs.
  • The LGX2W471MELC45 should be stored in a dry, cool place, away from direct sunlight and moisture, to prevent degradation of the capacitor's performance and lifespan.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LGX2W471MELC45 Overview

Use the download button to access the LGX2W471MELC45 schematic symbol, PCB footprint, and 3D model.
