The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LGY1K332MELC30 is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The ESR of the LGY1K332MELC30 is 0.03Ω at 100kHz. A lower ESR means less energy loss and heat generation, resulting in improved efficiency and reliability in high-frequency applications.
The LGY1K332MELC30 has a rated operating temperature range of -40°C to 105°C. While it can operate at high temperatures, its capacitance and ESR may degrade over time. Consult with Nichicon Corporation or a qualified engineer to determine the capacitor's suitability for your specific high-temperature application.
To prevent damage and ensure long-term reliability, store the LGY1K332MELC30 in a cool, dry place with a temperature range of 5°C to 30°C (41°F to 86°F) and humidity below 70%. Avoid storing the capacitor in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LGY1K332MELC30 Overview

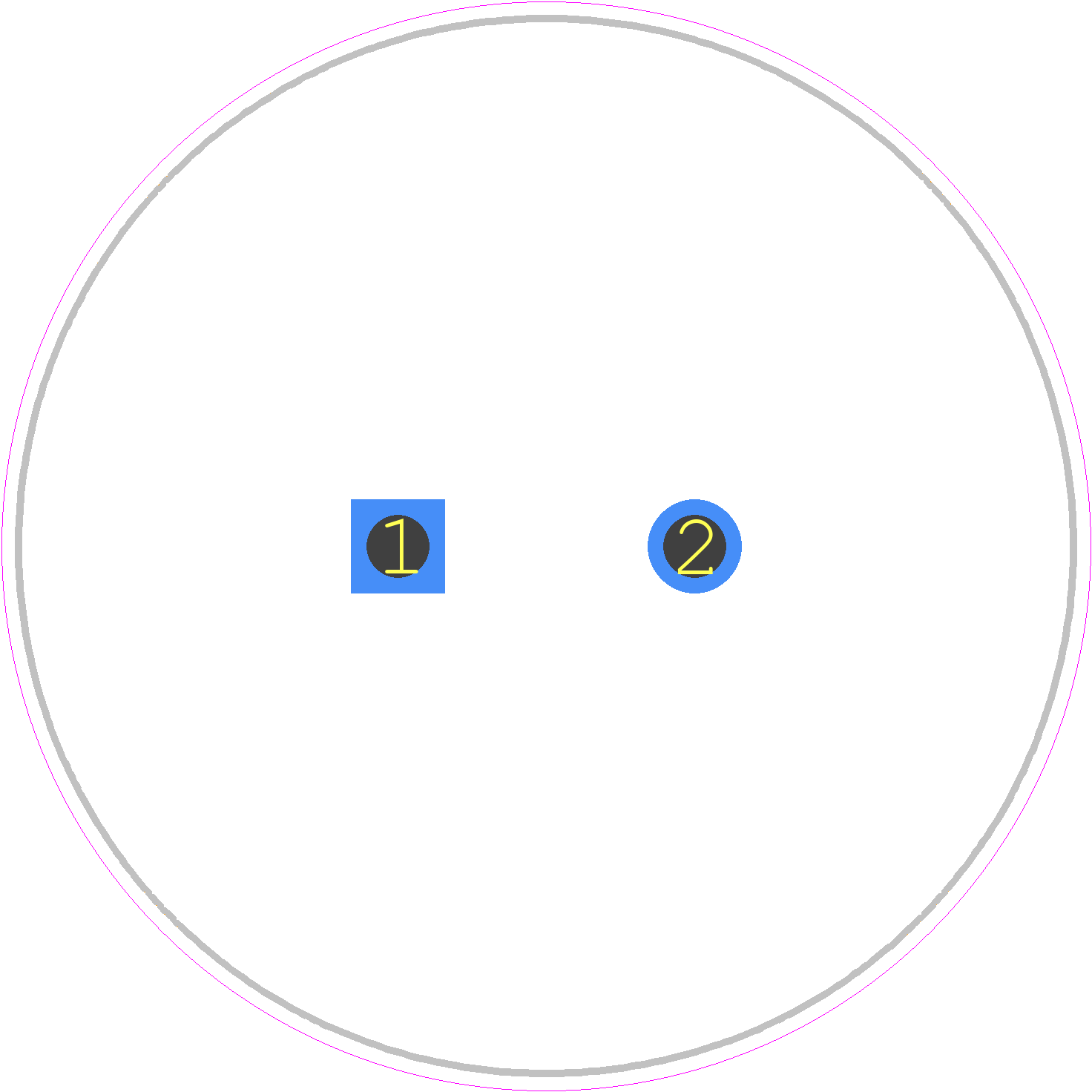

Use the download button to access the LGY1K332MELC30 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LGY1K,
or try a keyword search, such as Aluminum Electrolytic Capacitors
