LGY2A472MELC50 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 100volts 4700uF 0.2 35x50 105c

Download LGY2A472MELC50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LGY2A472MELC50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

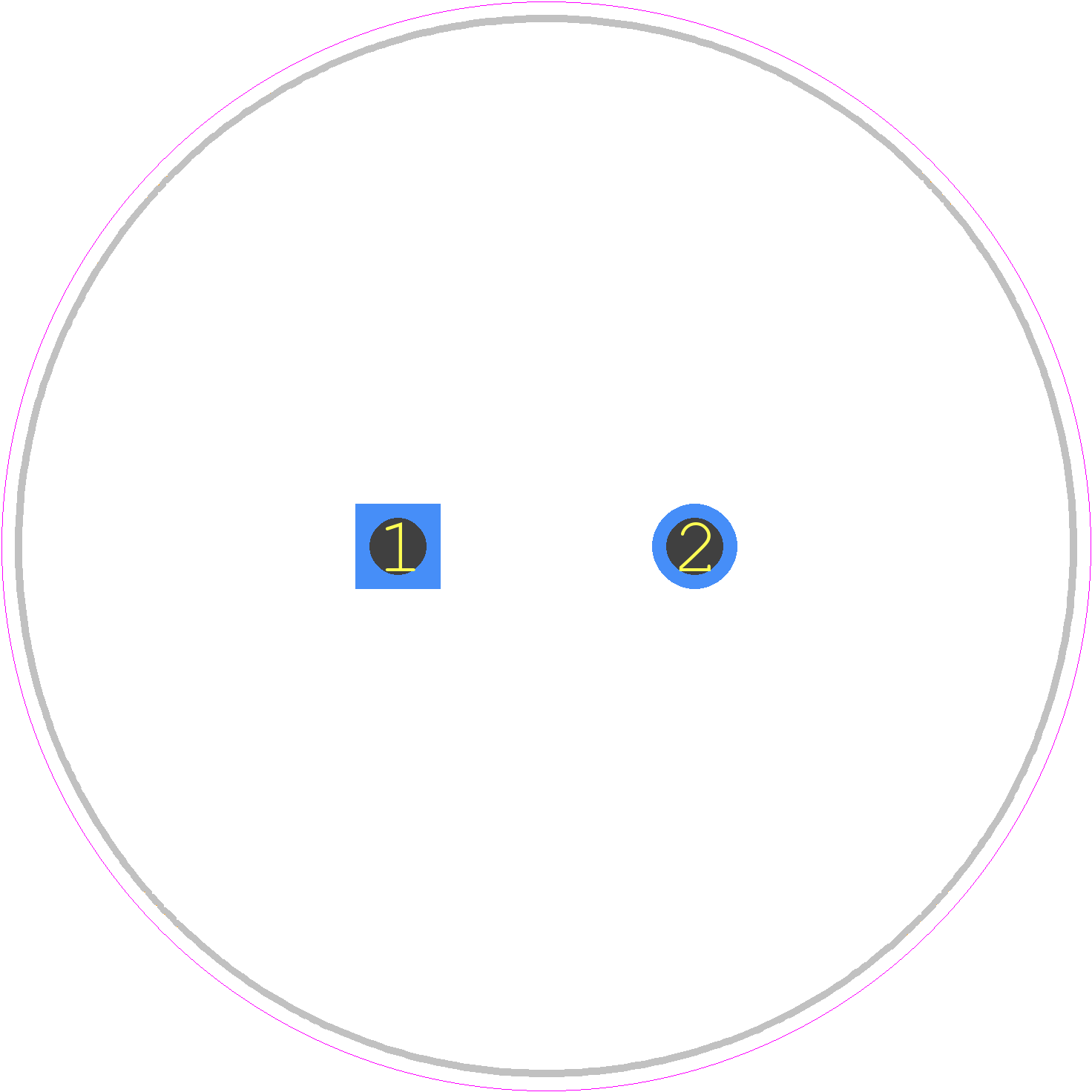

LGY2A472MELC50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 × 50
click to zoom
3D Models
LGY2A472MELC50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 35 × 50
click to zoom

LGY2A472MELC50 Details

  • Manufacturer Part Number:

    LGY2A472MELC50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.05 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    3200 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LGY2A472MELC50 Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less for the LGY2A472MELC50 capacitor to ensure reliable operation and prevent overheating.
  • The ESR of the LGY2A472MELC50 capacitor decreases with increasing frequency. According to Nichicon's application notes, the ESR at 100 kHz is approximately 30% of the ESR at 100 Hz.
  • The LGY2A472MELC50 capacitor has a maximum operating temperature of 105°C, making it suitable for use in high-temperature environments. However, the capacitor's lifespan may be reduced at elevated temperatures.
  • Nichicon recommends mounting the LGY2A472MELC50 capacitor using a reflow soldering process with a peak temperature of 260°C or less. Hand soldering is not recommended due to the risk of overheating the capacitor.
  • The capacitance of the LGY2A472MELC50 capacitor decreases with increasing temperature. According to Nichicon's datasheet, the capacitance at 105°C is approximately 90% of the capacitance at 20°C.
