- Part Number LH0033G
- Manufacturer Texas Instruments
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Other

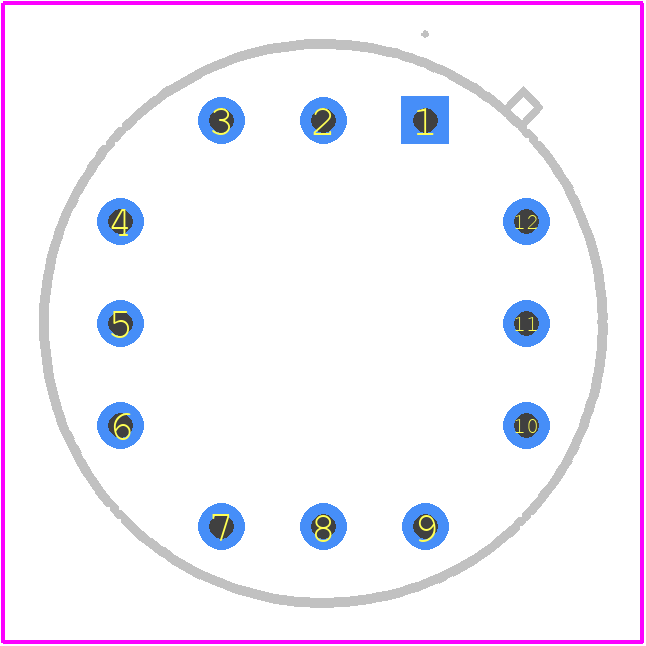

- Footprint Name Other - G12B
- Released Date Sep 22, 2021
- Last Modified Date Jan 14, 2024 6:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
LH0033G Details
-
Manufacturer Part Number:
LH0033G
-
Rohs Code:
No
-
Part Life Cycle Code:
Obsolete
-
Package Description:
TO-8, QUAD12,.4SQ
-
Reach Compliance Code:
Unknown
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Amplifier Type:
BUFFER
-
Average Bias Current-Max (IIB):
0.0025 µA
LH0033G Frequently Asked Questions (FAQs)
-
The LH0033G can operate from -40°C to 85°C, making it suitable for a wide range of applications.
-
To ensure proper biasing, connect the VCC pin to a stable 5V power supply, and decouple it with a 0.1uF capacitor to ground. Also, connect the VEE pin to a stable -5V power supply, and decouple it with a 0.1uF capacitor to ground.
-
To minimize noise and interference, keep the LH0033G away from high-frequency signals and noise sources. Use a ground plane to reduce electromagnetic interference (EMI). Route the input and output signals away from each other, and use shielded cables or twisted pairs for connections.
-
To troubleshoot common issues, check the power supply voltage and decoupling capacitors. Ensure the input and output impedances are matched, and the gain is set correctly. Use an oscilloscope to check for oscillations or instability, and adjust the circuit accordingly.
-
Yes, the LH0033G is suitable for high-reliability and aerospace applications due to its high reliability, low noise, and wide operating temperature range. However, ensure that the device is properly qualified and screened for the specific application.
Trust Checks
Expert Contribution
System Verified
Community Approved
LH0033G Overview

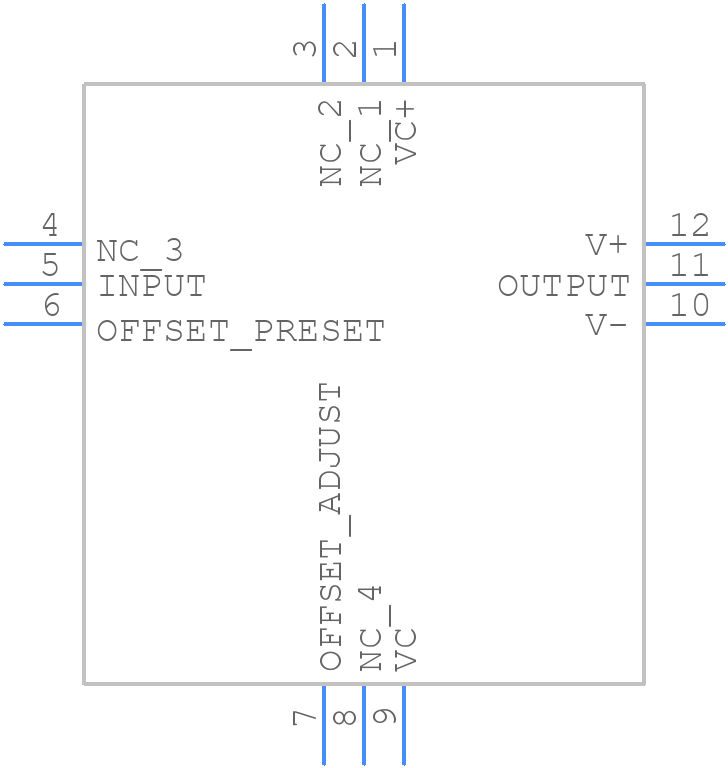

Use the download button to access the LH0033G schematic symbol and PCB footprint.
