A recommended PCB layout for the LH1262CAC is to use a thermal pad with a minimum size of 100 mm², and to place thermal vias under the pad to improve heat dissipation. Additionally, keeping the component placement and routing symmetrical can help reduce thermal resistance.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the LH1262CAC. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink, and ensure proper airflow around the device.
The maximum allowable voltage stress for the LH1262CAC is 1.5 times the rated voltage (Vr) for a maximum duration of 10 seconds. Exceeding this limit can lead to device failure.
While the LH1262CAC is primarily designed for linear applications, it can be used in high-frequency switching applications with proper design considerations. However, the device's switching characteristics, such as rise and fall times, may not be optimized for high-frequency switching.
To handle power dissipation in a high-current application, ensure proper heat sinking, use a sufficient thermal interface material, and consider using a heat sink with a high thermal conductivity. Additionally, follow the recommended derating curves for the LH1262CAC.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LH1262CAC Overview

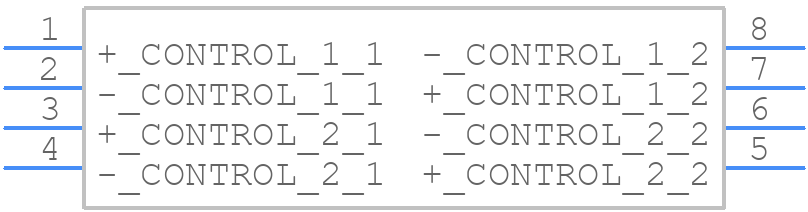

Use the download button to access the LH1262CAC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LH126,
or try a keyword search, such as Other Optoelectronics
