Part Image

LH1514AB - Vishay

Description: Relay SSR 20mA 1.45V DC-IN 0.15A 15V AC/DC-OUT 8-Pin PDIP Tube - Bulk

Download LH1514AB Model

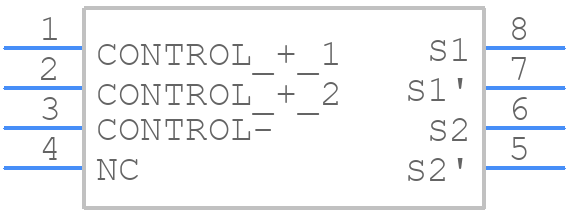

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LH1514AB - Vishay PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 90136-1206
click to zoom
3D Models
LH1514AB - Vishay  - 3D model - Dual-In-Line Packages - 90136-1206
click to zoom

LH1514AB Details

  • Manufacturer Part Number:

    LH1514AB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.40.95.00

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Additional Feature:

    VDE APPROVED

  • Configuration:

    DUAL, SIMULTANEOUS OPERATION

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    3750 V

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • On-State Current-Max:

    0.15 A

  • On-state Resistance-Max:

    8 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT SSR

  • Terminal Finish:

    Tin (Sn)

LH1514AB Frequently Asked Questions (FAQs)

  • A recommended PCB layout for optimal thermal performance would be to use a large copper area for the thermal pad, and to connect it to a solid ground plane. This helps to dissipate heat efficiently. Additionally, it's recommended to use thermal vias to connect the top and bottom layers of the PCB to further improve heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices, such as providing adequate heat sinking, using a heat spreader, and ensuring good airflow. Additionally, the device should be operated within its specified temperature range, and the junction temperature should be monitored to prevent overheating.
  • For EMI and RFI shielding, it's recommended to use a metal shield around the device, and to connect it to a solid ground plane. Additionally, the PCB layout should be designed to minimize radiation and coupling between components. It's also important to follow proper grounding and shielding techniques to prevent electromagnetic interference.
  • To handle the high current handling capability of the LH1514AB, it's essential to use a robust PCB design with wide traces and a solid ground plane. Additionally, the device should be mounted on a heat sink to dissipate heat efficiently. It's also important to follow proper wire bonding and die attach techniques to ensure reliable operation.
  • Vishay Intertechnologies has a robust quality control process in place, which includes rigorous testing and inspection of the devices. The LH1514AB is also qualified to various industry standards, such as AEC-Q101, which ensures its reliability and performance in automotive and other high-reliability applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LH1514AB Overview

Use the download button to access the LH1514AB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LH151, or try a keyword search, such as Solid State Relays
