Part Image

LHA-13HLN+ - Mini-Circuits

Description: Low Noise MMIC Amplifier, 1 MHz to 1 GHz

Download LHA-13HLN+ Model

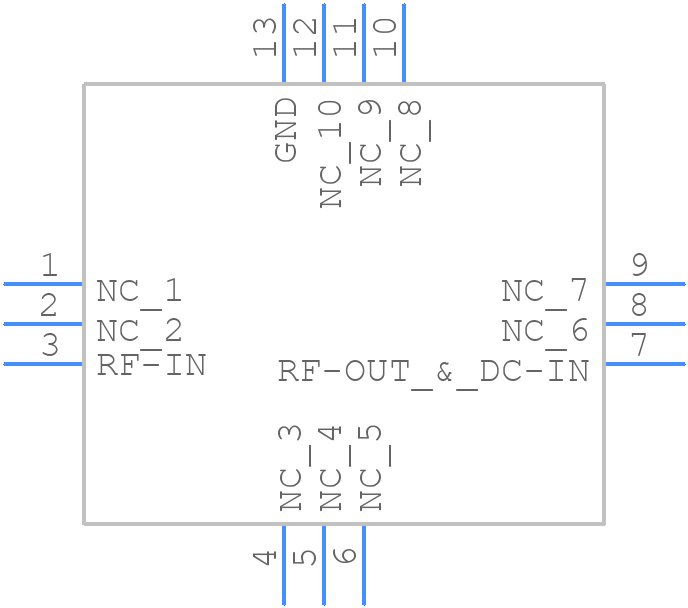

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LHA-13HLN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-12
click to zoom
3D Models
LHA-13HLN+ - Mini-Circuits  - 3D model - Quad Flat No-Lead - QFN-12
click to zoom

LHA-13HLN+ Details

  • Manufacturer Part Number:

    LHA-13HLN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-07-13

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    WIDE BAND MEDIUM POWER

LHA-13HLN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane around the amplifier. The input and output traces should be kept short and away from the edges of the board. A decoupling capacitor (e.g. 100nF) should be placed close to the amplifier's power pins.
  • To prevent oscillations, ensure that the amplifier is operated within its recommended gain and frequency range. Use a resistive load and avoid capacitive loads. Add a 10-20 ohm resistor in series with the output to improve stability. If necessary, add a ferrite bead or a small inductor in series with the power supply to filter out high-frequency noise.
  • The LHA-13HLN+ can handle up to 1W of power dissipation. However, it's recommended to derate the power handling to 0.5W or less to ensure reliable operation and prevent overheating.
  • Yes, the LHA-13HLN+ can be used as a buffer amplifier in a 50 ohm system. However, the amplifier's output impedance is not exactly 50 ohms, so some impedance matching may be required to achieve optimal performance.
  • To troubleshoot common issues, start by checking the power supply voltage and ensuring it's within the recommended range. Verify that the input and output signals are within the recommended amplitude and frequency range. Use an oscilloscope to check for noise, distortion, or oscillations. Check the PCB layout and grounding scheme for any issues. If necessary, add filtering or shielding to reduce noise and interference.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LHA-13HLN+ Overview

Use the download button to access the LHA-13HLN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LHA-1, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
