LHA-23LN+ - Mini-Circuits

Description: RF Amplifier SMT Low Noise Amplifier, 30 - 2000 MHz, 50 ohms

Download LHA-23LN+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

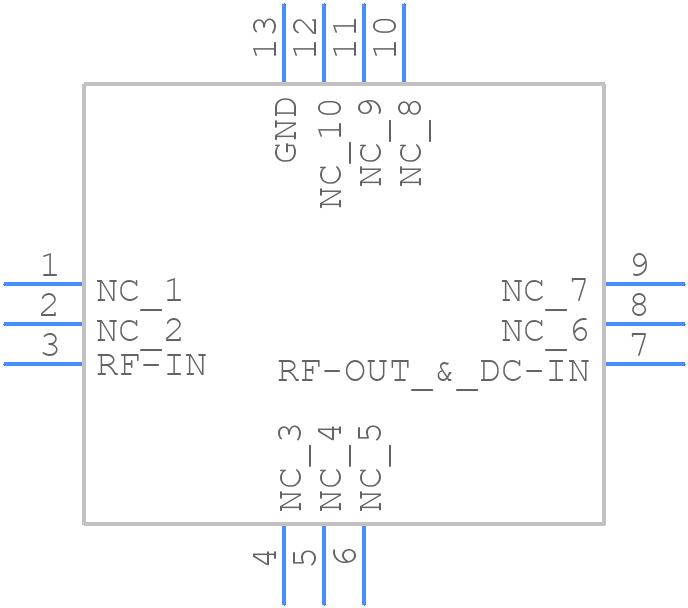

LHA-23LN+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LHA-23LN+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - DQ1225
click to zoom
3D Models
LHA-23LN+ - Mini-Circuits - 3D model - Quad Flat No-Lead - DQ1225
click to zoom

LHA-23LN+ Details

  • Manufacturer Part Number:

    LHA-23LN+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

LHA-23LN+ Frequently Asked Questions (FAQs)

  • Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a low-inductance path to ground for the amplifier's ground pins. A good layout practice is to use a star-ground configuration, where all ground connections are connected to a single point on the PCB.
  • The LHA-23LN+ requires a single +12V to +15V power supply. Ensure the voltage supply is well-regulated and filtered to prevent noise and ripple. A 10uF to 22uF decoupling capacitor should be placed close to the amplifier's power pins.
  • The LHA-23LN+ can handle input powers up to +10dBm. Exceeding this limit may cause compression, distortion, or even damage to the amplifier.
  • The LHA-23LN+ has a 50Ω input and output impedance. Use a π-network or a T-network matching circuit to match the amplifier's impedance to the system's impedance, typically 50Ω.
  • The LHA-23LN+ operates over a temperature range of -40°C to +85°C. However, the amplifier's performance may degrade at extreme temperatures, and the device may not meet its specified performance characteristics.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LHA-23LN+ Overview

Use the download button to access the LHA-23LN+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LHA-2, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
