LHA-83W+ - Mini-Circuits

Description: RF Amplifier SMT Gain Block, 50 - 8000 MHz, 50ohm

Download LHA-83W+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

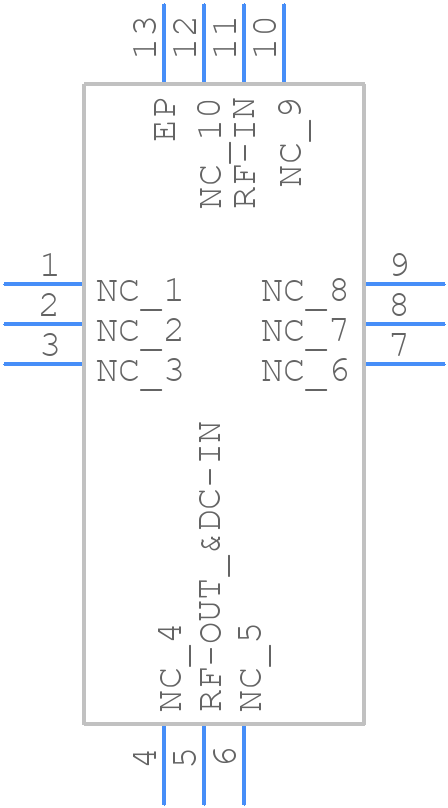

Symbol
LHA-83W+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
LHA-83W+ - Mini-Circuits PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - LHA-83W+
click to zoom
3D Models
LHA-83W+ - Mini-Circuits - 3D model - Quad Flat No-Lead - LHA-83W+
click to zoom

LHA-83W+ Details

  • Manufacturer Part Number:

    LHA-83W+

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2020-03-16

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    6.83

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    14.9 dB

  • Input Power-Max (CW):

    18 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Frequency-Max:

    8000 MHz

  • Operating Frequency-Min:

    50 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5/9 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    127 mA

  • Surface Mount:

    YES

  • Technology:

    PHEMT

  • Terminal Finish:

    Tin (Sn)

  • VSWR-Max:

    1.04

LHA-83W+ Frequently Asked Questions (FAQs)

  • The maximum input power that the LHA-83W+ can handle is +10 dBm. Exceeding this limit may cause damage to the amplifier.
  • The LHA-83W+ has a 50 ohm input and output impedance. To impedance match, use a 50 ohm transmission line or a matching network to ensure maximum power transfer and minimal reflections.
  • The LHA-83W+ operates from -40°C to +85°C. Operating outside this range may affect performance and reliability.
  • The LHA-83W+ is not hermetically sealed, so it's not recommended for use in high-humidity environments. If you must use it in a humid environment, ensure proper sealing and protection to prevent moisture ingress.
  • The LHA-83W+ requires a single +12V to +15V power supply. Use a high-quality, low-noise power supply to ensure optimal performance. Consult the datasheet for specific biasing requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LHA-83W+ Overview

Use the download button to access the LHA-83W+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LHA-8, or try a keyword search, such as RF/Microwave Amplifiers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
