LIFCL-33-8USG84I - Lattice Semiconductor

Description: FPGA - Field Programmable Gate Array Lattice CrossLink-NX Embedded Vision Bridging & Processing FPGA

Download LIFCL-33-8USG84I Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

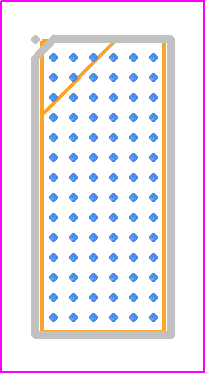

LIFCL-33-8USG84I - Lattice Semiconductor PCB footprint - BGA - BGA - 84-Ball USG/WLCSP_2025
click to zoom
3D Models
LIFCL-33-8USG84I - Lattice Semiconductor  - 3D model - BGA - 84-Ball USG/WLCSP_2025
click to zoom

LIFCL-33-8USG84I Details

  • Manufacturer Part Number:

    LIFCL-33-8USG84I

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Lattice Semiconductor Corporation

  • YTEOL:

    9

  • JESD-30 Code:

    R-XBGA-B84

  • Length:

    7.275 mm

  • Number of CLBs:

    4125

  • Number of Inputs:

    60

  • Number of Logic Cells:

    33000

  • Number of Outputs:

    60

  • Number of Terminals:

    84

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4125 CLBS

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA84,6X14,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    0.608 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    FDSOI, 28 nm

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    3.054 mm

LIFCL-33-8USG84I Frequently Asked Questions (FAQs)

  • Lattice Semiconductor provides a PCB layout guide and reference design files for the LIFCL-33-8USG84I, which can be found on their website. It's essential to follow these guidelines to ensure optimal signal integrity, power distribution, and thermal management.
  • Lattice Semiconductor provides a range of tools, including the Lattice Diamond software, to configure and program the LIFCL-33-8USG84I. Engineers can use these tools to create and verify their designs, and also leverage the device's built-in self-test capabilities to ensure correct configuration.
  • The LIFCL-33-8USG84I has a typical power consumption of around 1.5W, and a maximum junction temperature of 125°C. Engineers should ensure proper power supply design, thermal management, and heat dissipation to prevent overheating and ensure reliable operation.
  • Lattice Semiconductor provides guidelines and recommendations for EMC and EMI compliance in their documentation. Engineers should follow these guidelines, which include proper PCB layout, shielding, and filtering, to ensure compliance with relevant standards and regulations.
  • Lattice Semiconductor offers a range of development boards and kits, such as the Lattice ECP5 Evaluation Board, which provide a platform for evaluating and prototyping with the LIFCL-33-8USG84I. These boards typically include the FPGA, power supplies, and various interfaces and peripherals.
