LIS25BATR - STMicroelectronics

Description: MEMS digital output motion sensor: low-noise, high-bandwidth 3-axis accelerometer with TDM interface

Download LIS25BATR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

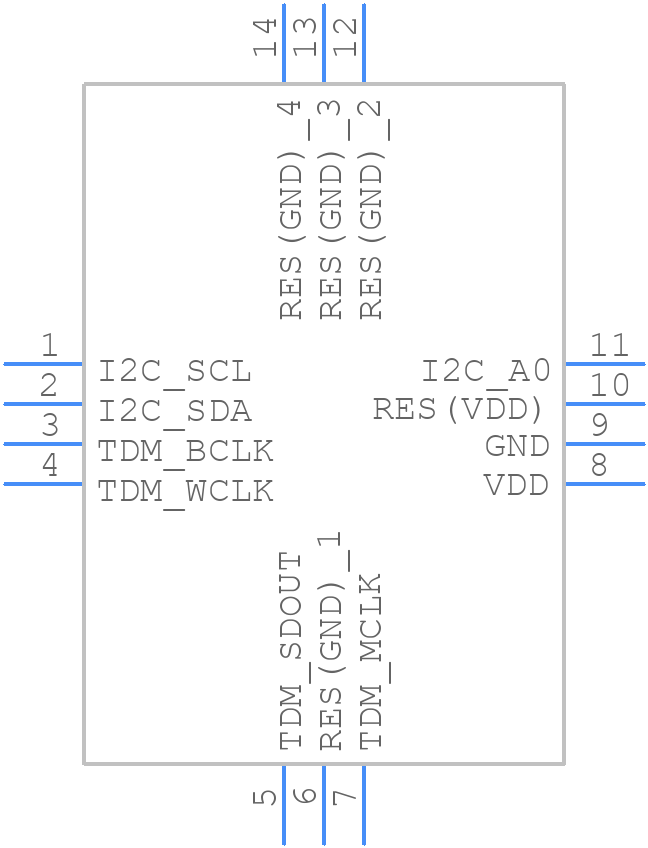

LIS25BATR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
LIS25BATR - STMicroelectronics PCB footprint - Other - Other - LIS25BATR-3
click to zoom
3D Models
LIS25BATR - STMicroelectronics - 3D model - Other - LIS25BATR-3
click to zoom

LIS25BATR Details

  • Manufacturer Part Number:

    LIS25BATR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LGA-14

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-02-06

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.86 mm

  • Body Length or Diameter:

    2.5 mm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    DIGITAL

  • Output Range:

    0.20-1.60V

  • Output Type:

    DIGITAL VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    LCC14,.1SQ,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    ACCELEROMETER

  • Supply Voltage-Max:

    1.99 V

  • Supply Voltage-Min:

    1.71 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Gold (Ni/Au) - electrolytic

LIS25BATR Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VDDIO before VDD. This ensures that the internal voltage regulators are properly powered up.
  • To configure the LIS25BATR for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA.
  • The self-test feature is used to verify the accelerometer's functionality. It applies a known stimulus to the sensor and measures the response. This can be used to detect any faults or defects in the device.
  • The output data from the LIS25BATR is a 16-bit, two's complement value representing the acceleration in each axis (x, y, z). The data is scaled according to the selected full-scale range (±2g, ±4g, ±8g, or ±16g).
  • The maximum sampling rate of the LIS25BATR is 1600 Hz. However, the actual sampling rate may be limited by the interface mode and the bandwidth of the sensor.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LIS25BATR Overview

Use the download button to access the LIS25BATR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LIS25, or try a keyword search, such as Other Sensors/Transducers

About STMicroelectronics

STMicroelectronics (ST) is a global semiconductor company that designs, manufactures, and markets a broad range of integrated circuits (ICs), discrete devices, and other electronic components. STMicroelectronics offers a diverse portfolio of semiconductor products covering a wide range of applications and industries. Their product categories include microcontrollers, analog and mixed-signal ICs, MEMS (Micro-Electro-Mechanical Systems) sensors, power management ICs, RF (Radio Frequency) transceivers, aut
