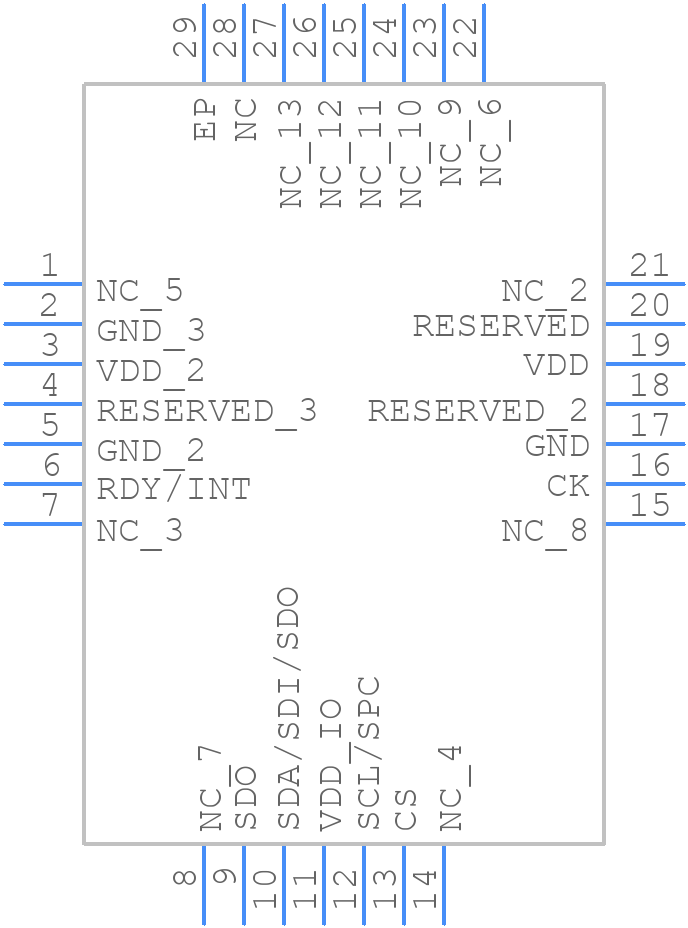

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LIS3LV02DQ
- Part Number LIS3LV02DQ
- Manufacturer STMicroelectronics
- Pin Count 29
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFN80P700X700X190-29N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LIS3LV02DQ Details
-
Manufacturer Part Number:
LIS3LV02DQ
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
QFN
-
Package Description:
7 X 7 MM, 1.9 MM HEIGHT, PLASTIC, QFN-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.01
-
Manufacturer:
STMicroelectronics
-
YTEOL:
0
-
Analog IC - Other Type:
ANALOG CIRCUIT
-
JESD-30 Code:
S-PQCC-N28
LIS3LV02DQ Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to apply VDD first, followed by VDDIO. This ensures that the internal voltage regulators are properly powered up before the digital interface is enabled.
-
To configure the LIS3LV02DQ for low-power mode, set the LPEN bit in the CTRL_REG1 register to 1. This reduces the current consumption to approximately 10 μA.
-
The self-test feature is used to verify the integrity of the sensor and the analog-to-digital converter (ADC). It applies a known acceleration to the sensor and checks the output values to ensure they are within the expected range.
-
The output data from the LIS3LV02DQ is a 12-bit or 10-bit digital value representing the acceleration in each axis (x, y, z). The data is twos-complement formatted, with the most significant bit (MSB) indicating the sign of the acceleration (0 = positive, 1 = negative).
-
The maximum acceleration range of the LIS3LV02DQ is ±2g, ±4g, or ±8g, depending on the range selection bits (FS1 and FS0) in the CTRL_REG4 register.
Trust Checks
System Verified
LIS3LV02DQ Overview
Use the download button to access the LIS3LV02DQ schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LIS3L,
or try a keyword search, such as Other Signal Circuits
