The recommended land pattern for LKX2W101MESA25 can be found in the Nichicon Corporation's recommended land pattern document or by contacting their technical support. The land pattern should ensure good solderability and thermal dissipation.
While LKX2W101MESA25 is a reliable component, it's essential to evaluate its performance in a high-vibration environment. Nichicon Corporation recommends consulting their technical support or performing vibration testing to ensure the component meets the specific application requirements.
The ESR of LKX2W101MESA25 is specified in the datasheet. To handle ESR in your design, consider the frequency of operation, ripple current, and impedance of the capacitor. You may need to add additional components or adjust your circuit design to compensate for the ESR.
Yes, LKX2W101MESA25 is compatible with lead-free soldering processes. Nichicon Corporation ensures that their components meet the requirements of lead-free soldering, but it's essential to follow the recommended soldering profile and temperature to prevent damage to the component.
The shelf life of LKX2W101MESA25 is typically 2 years from the date of manufacture, but it's recommended to store the components in a dry, cool place, away from direct sunlight and moisture. It's also essential to follow the recommended storage conditions and handling procedures to prevent damage or degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LKX2W101MESA25 Overview

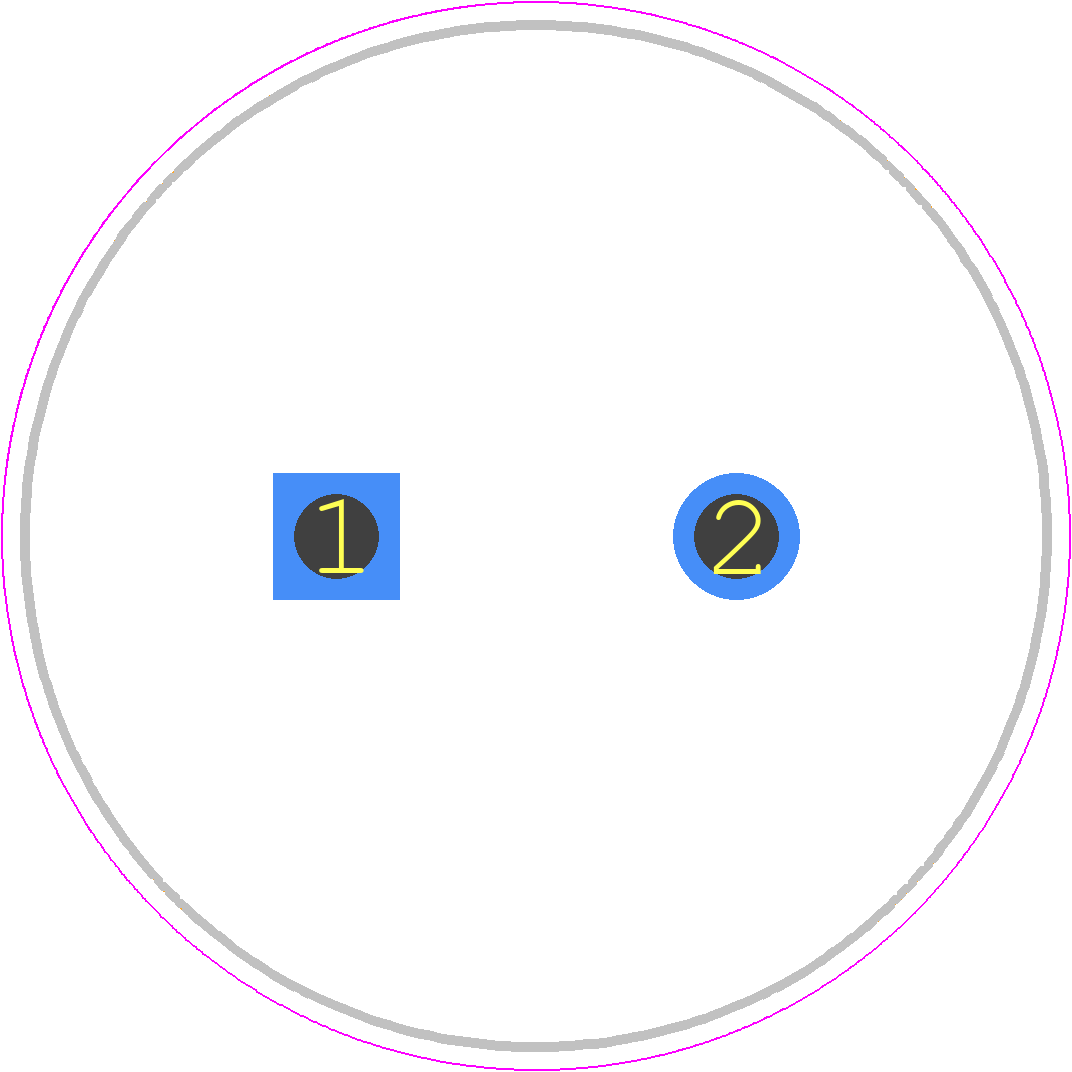

Use the download button to access the LKX2W101MESA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LKX2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
