LKX2W221MESA45 - Nichicon

Description: 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C

Download LKX2W221MESA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LKX2W221MESA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

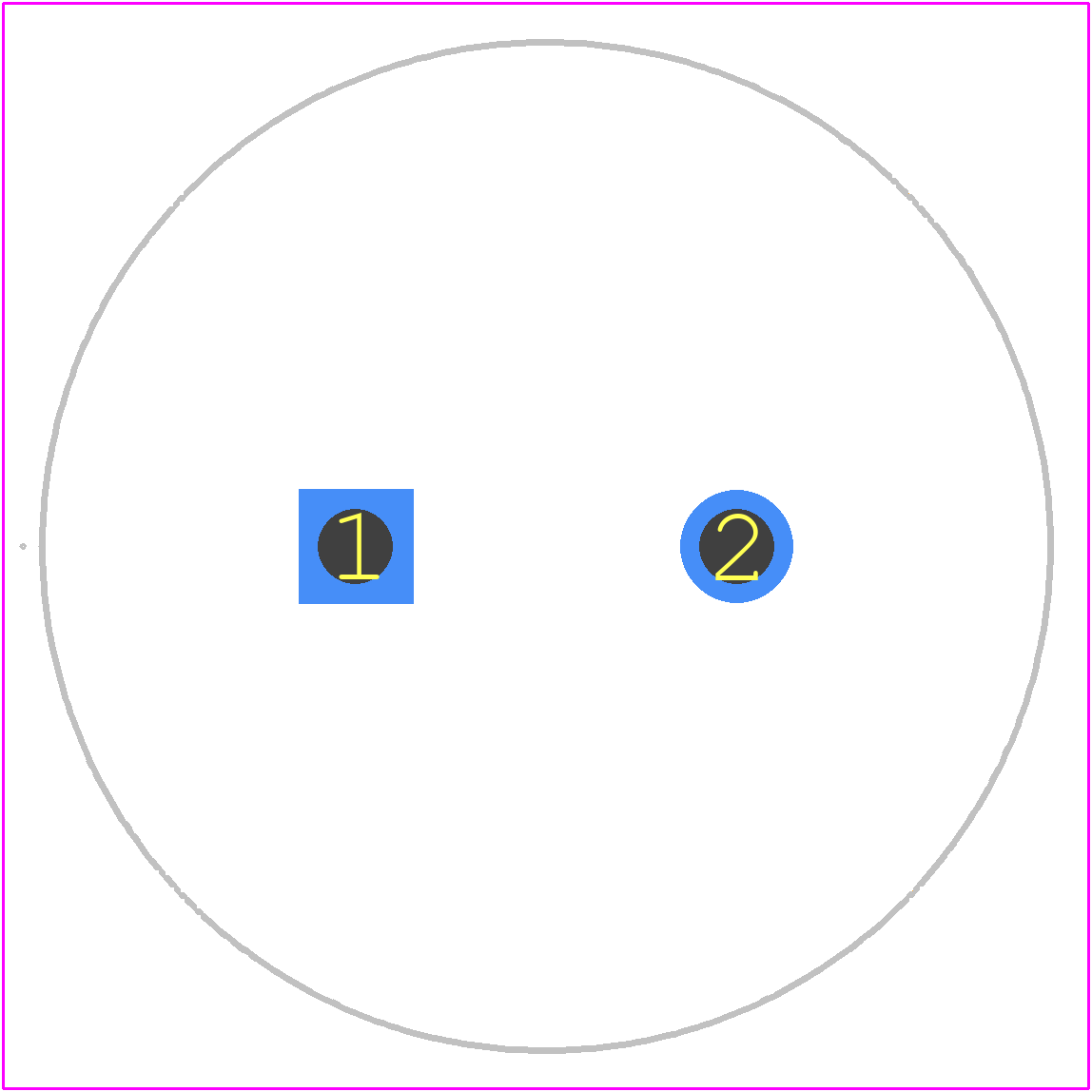

LKX2W221MESA45 - Nichicon PCB footprint - Other - Other - 25 x 45mm
click to zoom
3D Models
LKX2W221MESA45 - Nichicon - 3D model - Other - 25 x 45mm
click to zoom

LKX2W221MESA45 Details

  • Manufacturer Part Number:

    LKX2W221MESA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • Leakage Current:

    0.94 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1050 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Aluminum (Al)

  • Terminal Shape:

    SNAP-IN

LKX2W221MESA45 Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the LKX2W221MESA45 is relatively low, which means it can handle high-frequency switching and reduce energy losses. However, it's essential to consider the ESR when designing the circuit to ensure optimal performance.
  • The LKX2W221MESA45 has a maximum operating temperature of 105°C, making it suitable for most industrial and automotive applications. However, it's crucial to consider the temperature derating and ensure the capacitor is used within its specified temperature range.
  • Nichicon recommends using a reflow soldering method for mounting the LKX2W221MESA45. It's essential to follow the recommended soldering profile and handling procedures to prevent damage to the capacitor.
  • The capacitance of the LKX2W221MESA45 decreases with increasing temperature. Nichicon provides a capacitance vs. temperature curve in the datasheet, which can be used to estimate the capacitance at different temperatures.
