LLG2C102MELA30 - Nichicon

Description: 1000 µF 160 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 85°C

Download LLG2C102MELA30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2C102MELA30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

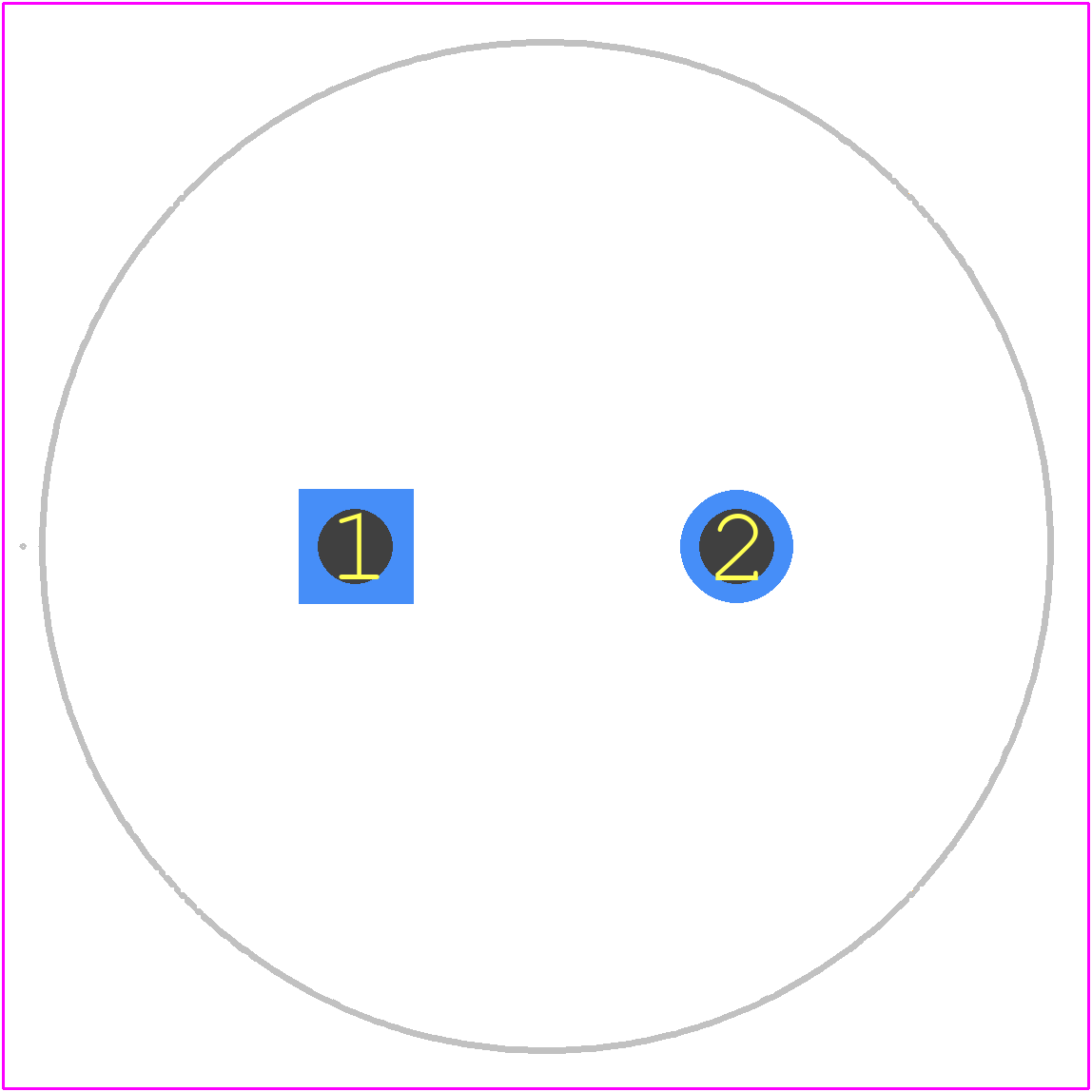

LLG2C102MELA30 - Nichicon PCB footprint - Other - Other - 25 x 30mm
click to zoom
3D Models
LLG2C102MELA30 - Nichicon - 3D model - Other - 25 x 30mm
click to zoom

LLG2C102MELA30 Details

  • Manufacturer Part Number:

    LLG2C102MELA30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.2 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Ripple Current:

    3000 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2C102MELA30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LLG2C102MELA30 is suitable for high-frequency applications up to 1 GHz, but the impedance and ESR may vary depending on the frequency.
  • The LLG2C102MELA30 is rated for operation up to 125°C, but the capacitance and ESR may degrade at high temperatures. Derating may be necessary for extended operation above 85°C.
  • Yes, the LLG2C102MELA30 is compatible with lead-free soldering processes, but the recommended soldering temperature and time may vary depending on the specific process.
  • The expected lifespan of the LLG2C102MELA30 is 10 years or more under normal operating conditions, but this may vary depending on the application and environmental factors.
