LLG2D681MELA30 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 200volts 680uF 85c 25x30x10L/S

Download LLG2D681MELA30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2D681MELA30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

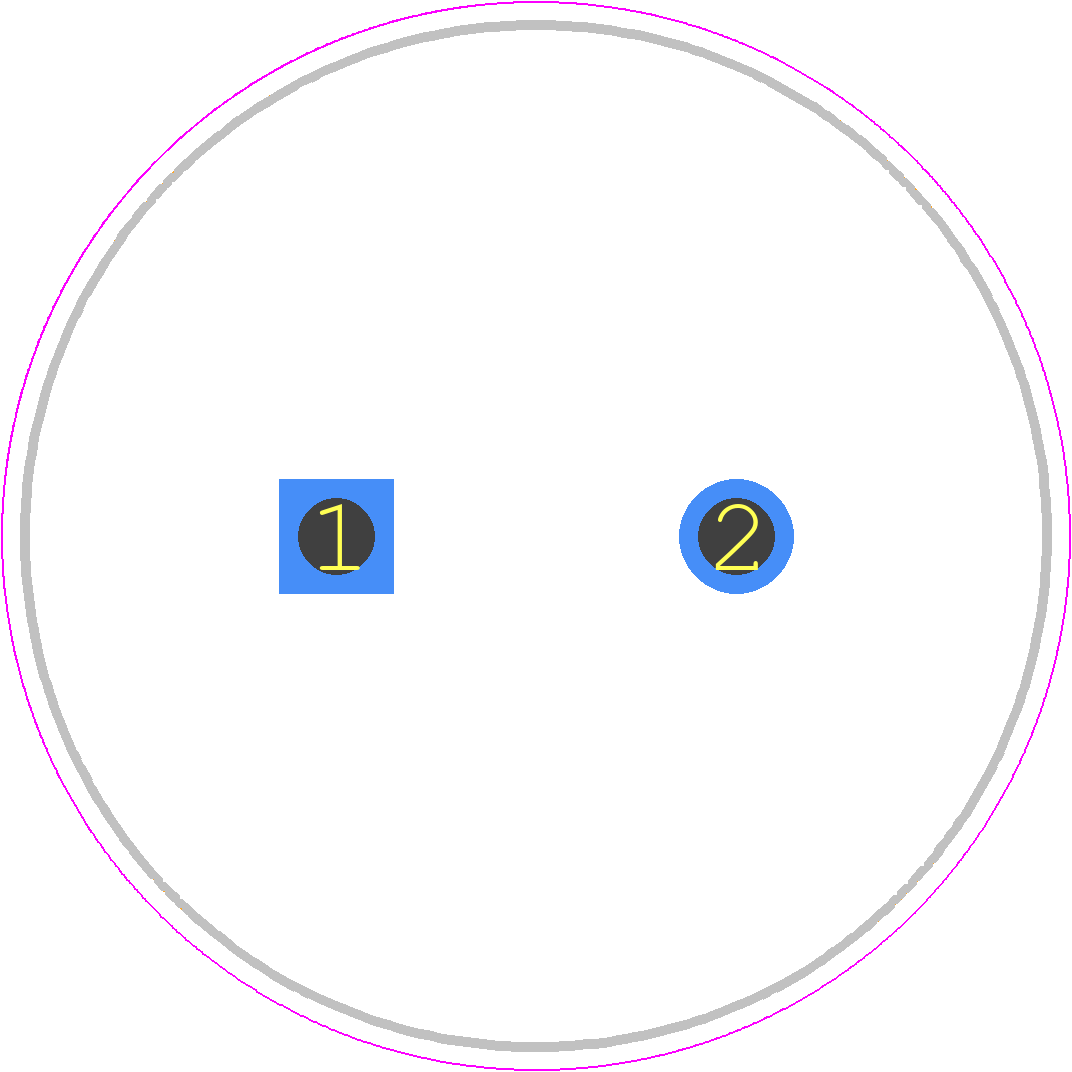

LLG2D681MELA30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25X30*
click to zoom
3D Models
LLG2D681MELA30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25X30*
click to zoom

LLG2D681MELA30 Details

  • Manufacturer Part Number:

    LLG2D681MELA30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    680 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    200 V

  • Ripple Current:

    2280 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2D681MELA30 Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% or less to ensure reliable operation and prevent overheating.
  • The ESR of the LLG2D681MELA30 decreases with increasing frequency, but the datasheet does not provide a specific graph or equation. However, Nichicon's general guideline is that the ESR decreases by approximately 20-30% from 100 kHz to 1 MHz.
  • The self-resonant frequency of the LLG2D681MELA30 is not explicitly stated in the datasheet, but it can be estimated to be around 1-2 MHz based on the capacitor's construction and materials.
  • The LLG2D681MELA30 is rated for operation up to 105°C, but Nichicon recommends derating the voltage and current to ensure reliable operation. Consult the datasheet and Nichicon's application notes for specific guidance.
  • The capacitance of the LLG2D681MELA30 decreases with increasing temperature, following a typical ceramic capacitor temperature characteristic. The datasheet does not provide a specific graph, but Nichicon's general guideline is a capacitance decrease of around 10-15% from 25°C to 105°C.
