LLG2G102MELC50 - Nichicon

Description: Cap Aluminum Lytic 1000uF 400V 20% (35 X 50mm) Snap-In 10mm 3300mA 2000h 85°C Bulk

Download LLG2G102MELC50 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2G102MELC50 - Nichicon - PCB symbol
click to zoom
PCB Footprints

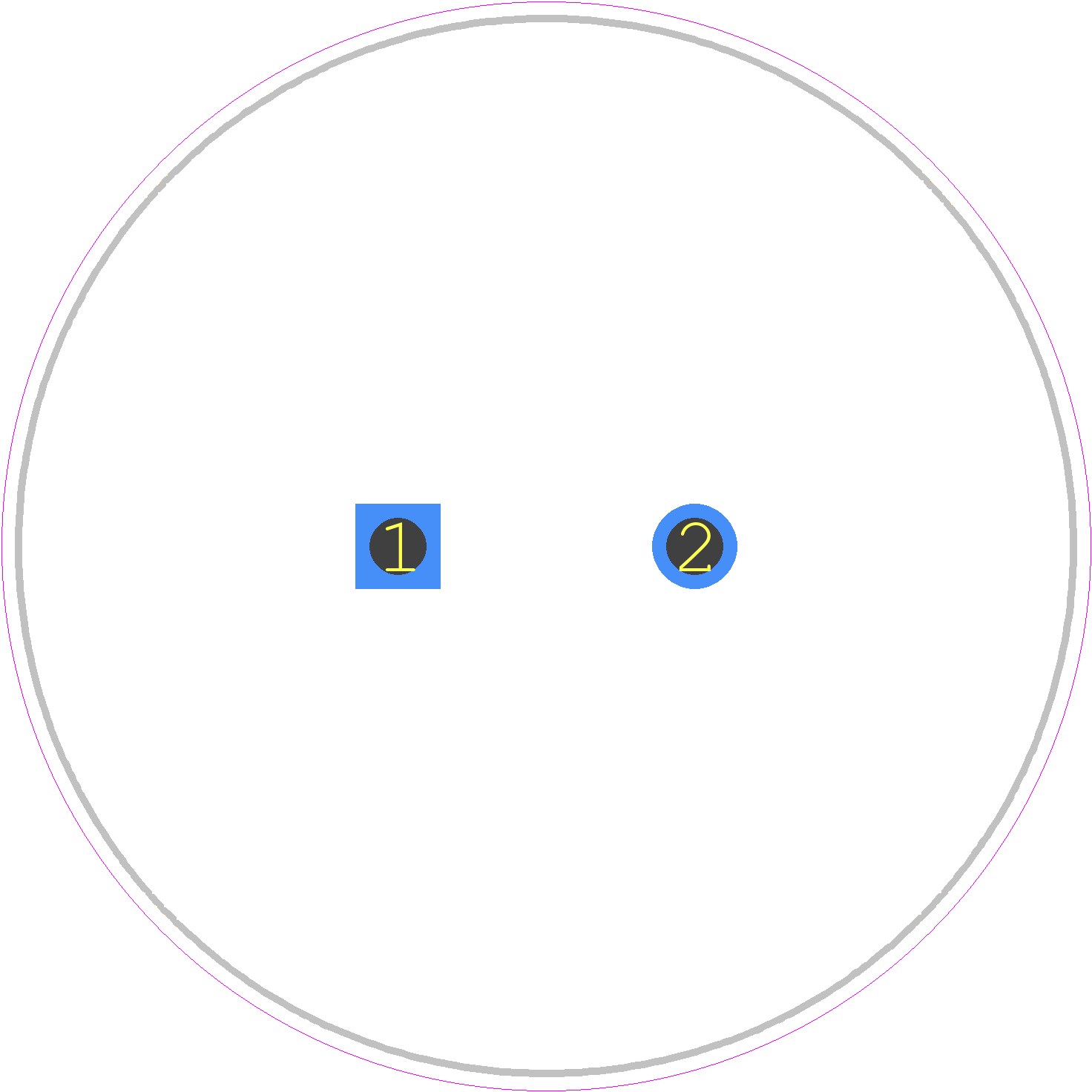

LLG2G102MELC50 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LLG2G102MELC50
click to zoom
3D Models
LLG2G102MELC50 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LLG2G102MELC50
click to zoom

LLG2G102MELC50 Details

  • Manufacturer Part Number:

    LLG2G102MELC50

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.89 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    3300 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2G102MELC50 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLG2G102MELC50 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLG2G102MELC50 capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LLG2G102MELC50 capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LLG2G102MELC50 capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.
