LLG2G471MELC30 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 400Volts 470uF 20% 85 Degree

Download LLG2G471MELC30 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2G471MELC30 - Nichicon - PCB symbol
click to zoom
PCB Footprints

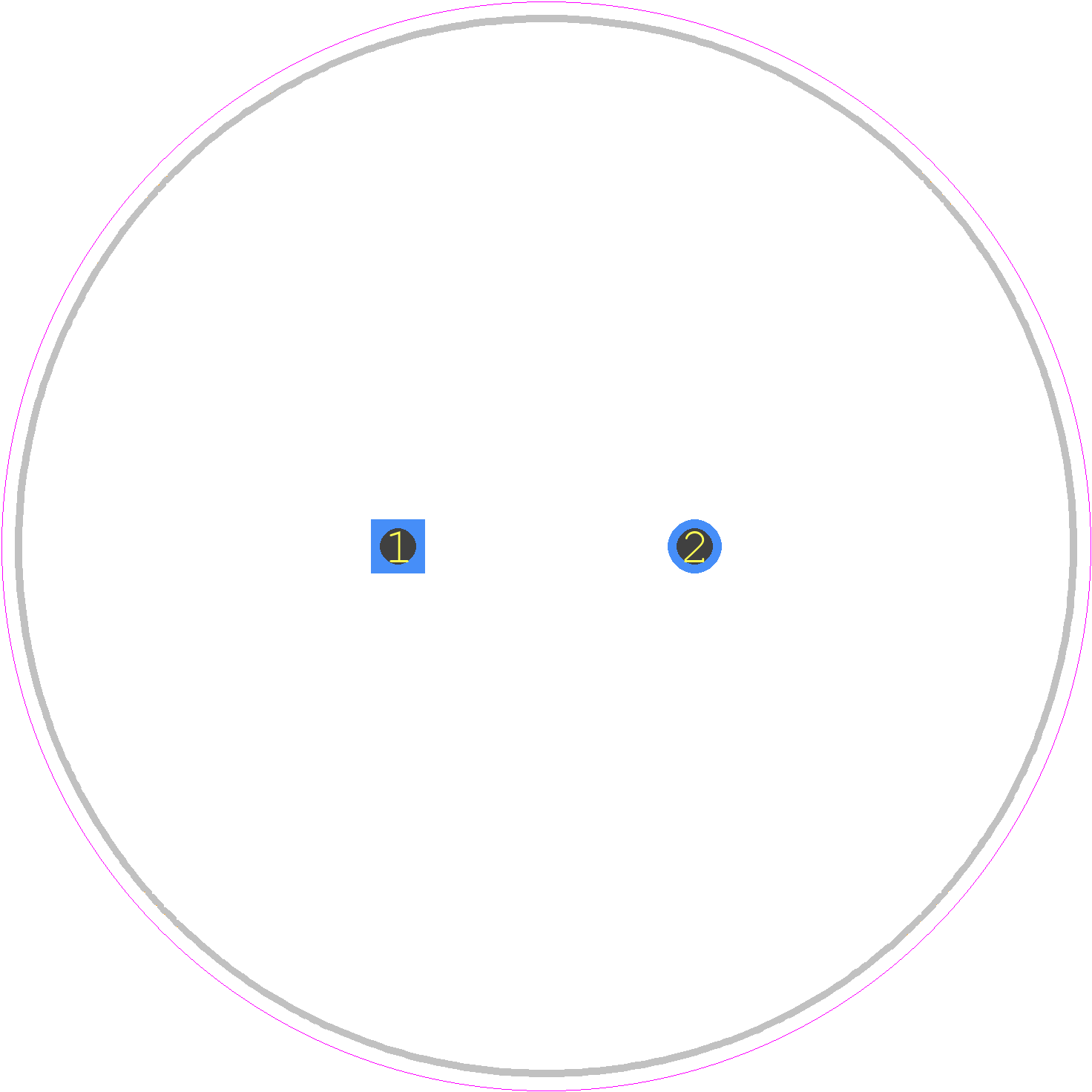

LLG2G471MELC30 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35X30
click to zoom
3D Models
LLG2G471MELC30 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 35X30
click to zoom

LLG2G471MELC30 Details

  • Manufacturer Part Number:

    LLG2G471MELC30

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.3 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2130 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2G471MELC30 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LLG2G471MELC30 is designed to withstand high vibrations and can be used in applications where vibration is a concern.
  • Yes, the LLG2G471MELC30 is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The derating curve for the LLG2G471MELC30 can be obtained from Nichicon Corporation or a authorized distributor, as it is not typically provided in the datasheet.
  • The LLG2G471MELC30 has a maximum operating temperature of 125°C, but it can be used in high-temperature applications with proper derating and consideration of the capacitor's characteristics.
