LLG2G561MELB40 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 400Volts 560uF 20% 85 Degree , 560 µF , 400 V , -25°C ~ 85°C

Download LLG2G561MELB40 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2G561MELB40 - Nichicon - PCB symbol
click to zoom
PCB Footprints

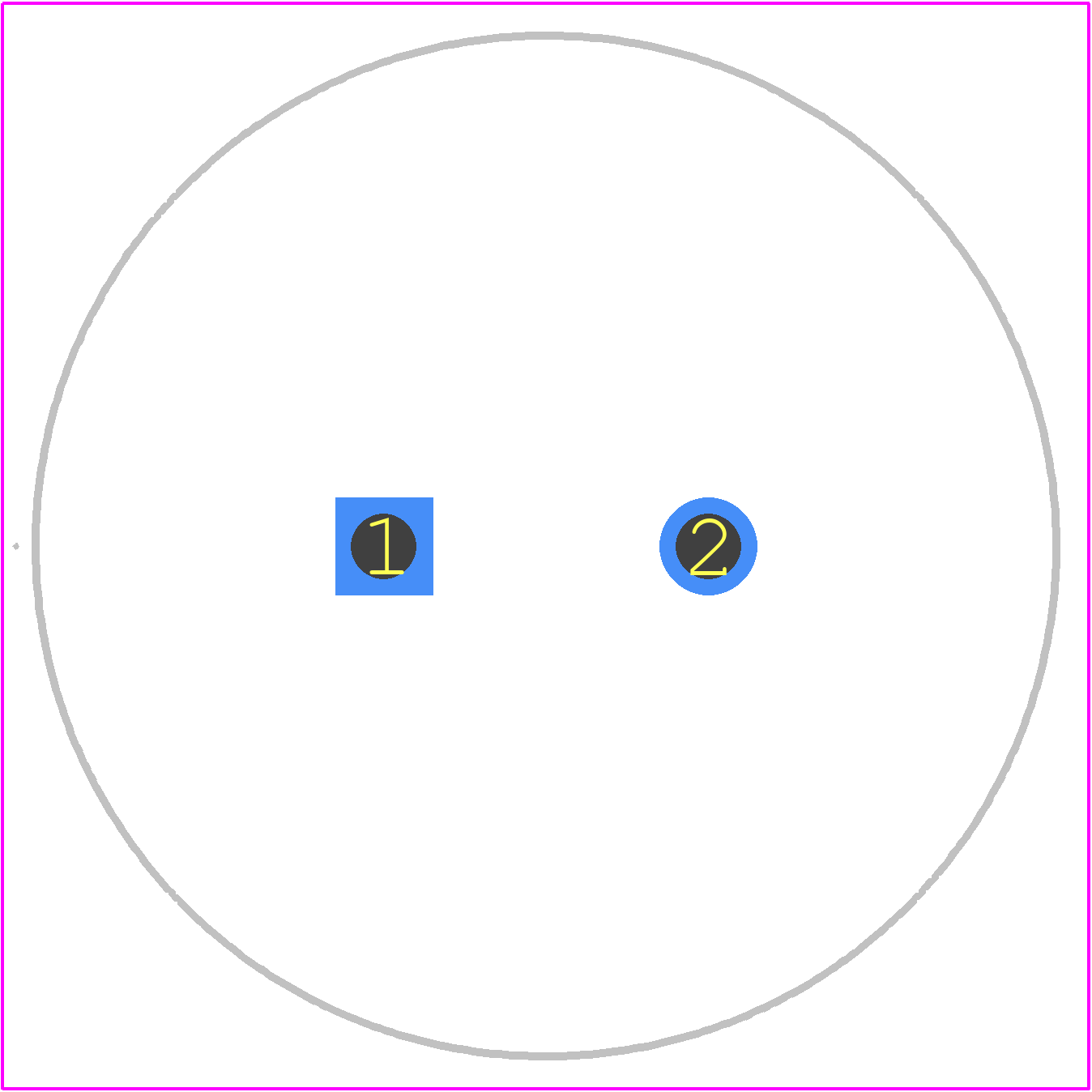

LLG2G561MELB40 - Nichicon PCB footprint - Other - Other - 30 X 40mm_2025-1.1
click to zoom
3D Models
LLG2G561MELB40 - Nichicon - 3D model - Other - 30 X 40mm_2025-1.1
click to zoom

LLG2G561MELB40 Details

  • Manufacturer Part Number:

    LLG2G561MELB40

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    560 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.41 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    2390 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2G561MELB40 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the LLG2G561MELB40 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of the LLG2G561MELB40 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LLG2G561MELB40 is designed to withstand high-vibration environments, with a vibration endurance of 10-2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
  • The shelf life of the LLG2G561MELB40 is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLG2G561MELB40 Overview

Use the download button to access the LLG2G561MELB40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLG2G, or try a keyword search, such as Aluminum Electrolytic Capacitors
