The recommended soldering temperature profile for the LLG2G821MELC40 is 250°C for 3 seconds, with a peak temperature of 260°C for 1 second. However, it's recommended to consult the Nichicon application note for more detailed information.
The LLG2G821MELC40 is designed to handle high-frequency noise effectively due to its low equivalent series resistance (ESR) and high resonance frequency. However, the actual performance may vary depending on the specific application and circuit design.
Yes, the LLG2G821MELC40 is suitable for automotive applications due to its high reliability, low ESR, and high ripple current capability. However, it's recommended to consult the Nichicon application note and ensure compliance with relevant automotive standards.
The shelf life of the LLG2G821MELC40 capacitor is typically 2 years from the date of manufacture, but it's recommended to store the components in a dry, cool place, away from direct sunlight and moisture.
The LLG2G821MELC40 capacitor is rated for operation up to 125°C, but it's recommended to derate the component according to the Nichicon derating chart to ensure reliable operation in high-temperature applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLG2G821MELC40 Overview

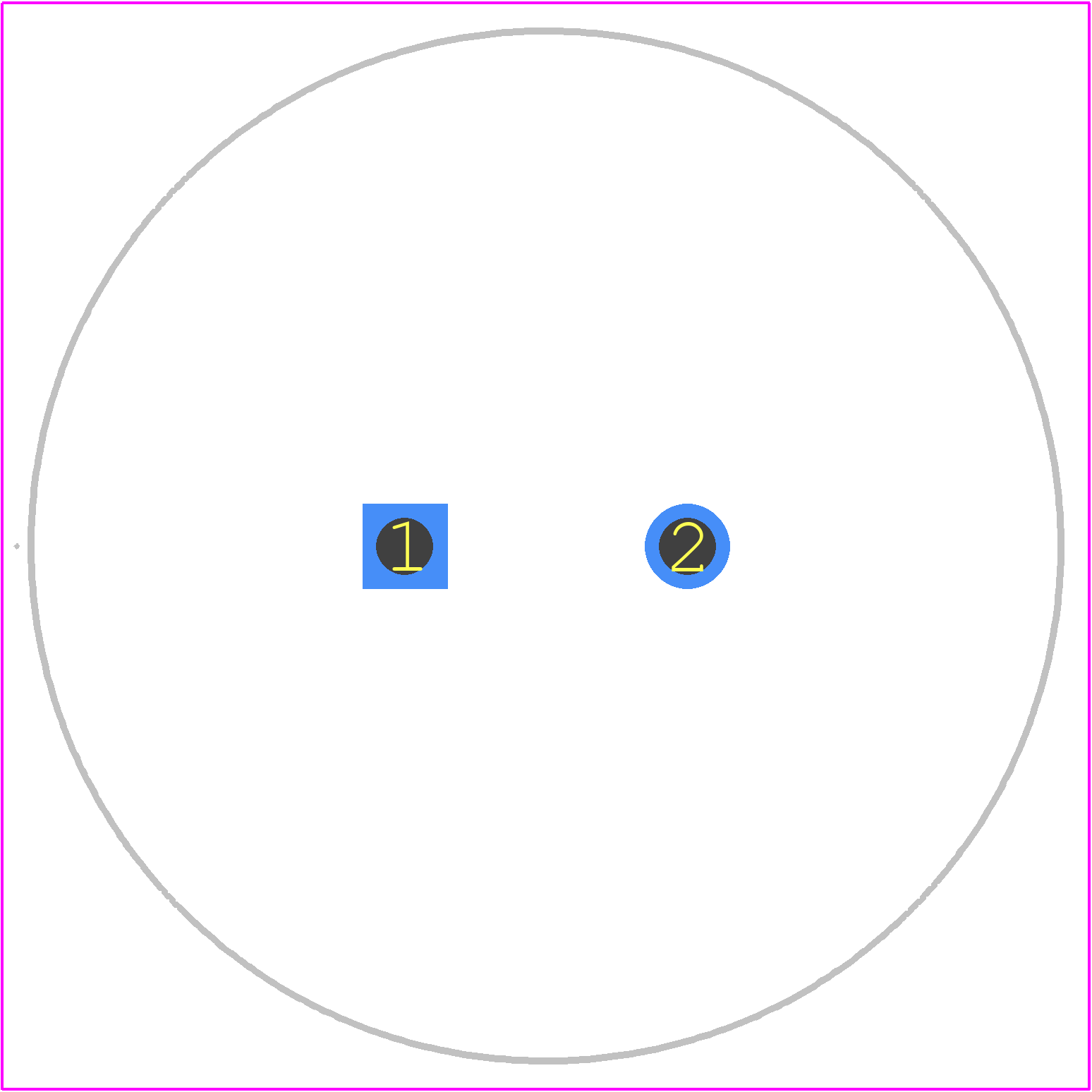

Use the download button to access the LLG2G821MELC40 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLG2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
