LLG2W331MELA45 - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 450Volts 330uF 20% 85 Degree

Download LLG2W331MELA45 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLG2W331MELA45 - Nichicon - PCB symbol
click to zoom
PCB Footprints

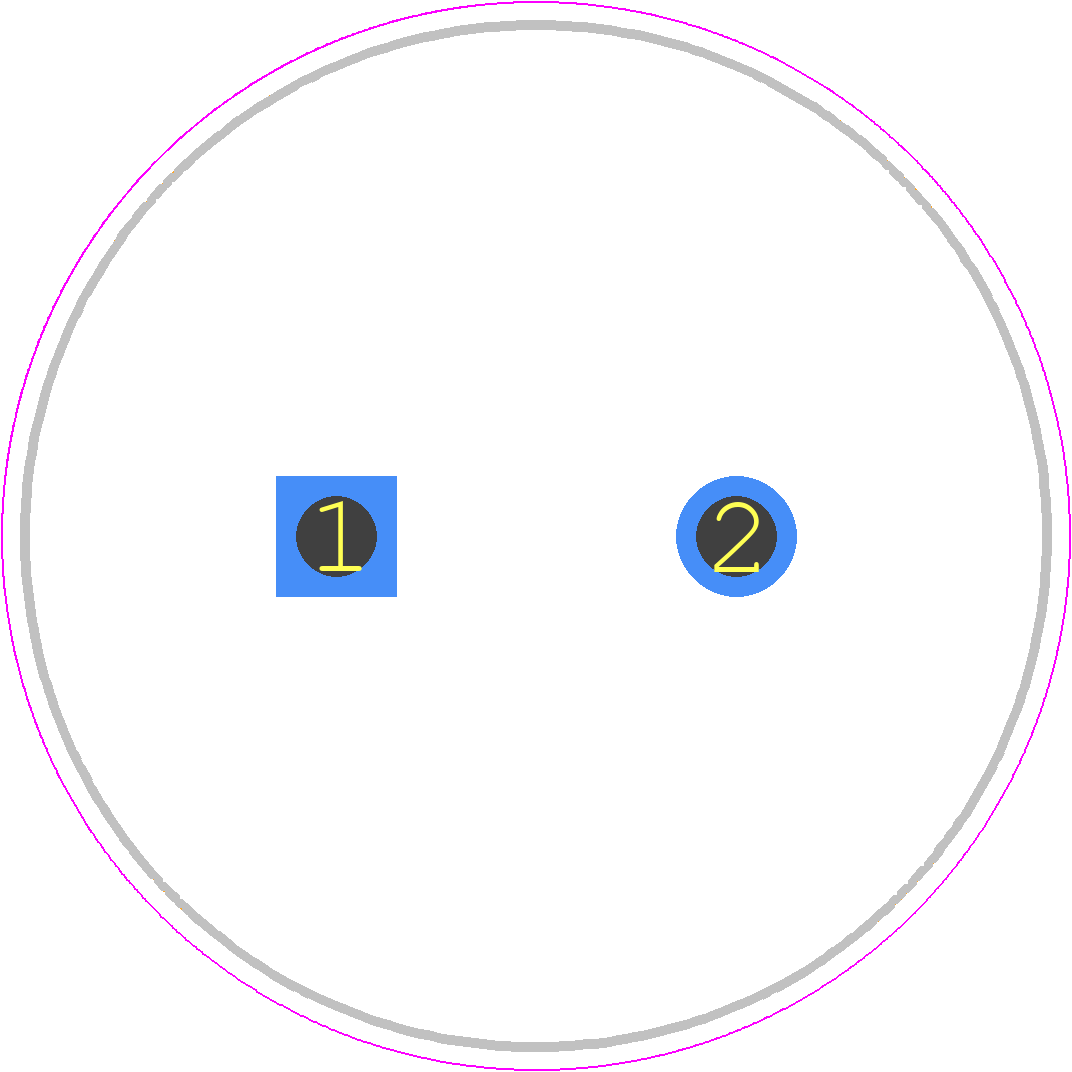

LLG2W331MELA45 - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*45
click to zoom
3D Models
LLG2W331MELA45 - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25*45
click to zoom

LLG2W331MELA45 Details

  • Manufacturer Part Number:

    LLG2W331MELA45

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.15 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1950 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLG2W331MELA45 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is between 250°C to 260°C for 3 seconds to 5 seconds.
  • Yes, the LLG2W331MELA45 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's standards for reducing hazardous substances in electronic components.
  • The ESR of the LLG2W331MELA45 is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
  • Yes, the LLG2W331MELA45 is designed to withstand high-vibration environments, with a vibration endurance of 10 Hz to 2000 Hz, 1.5 mm amplitude, and 3 hours per axis.
  • The shelf life of the LLG2W331MELA45 is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.
