The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
Yes, the LLQ2W101MHSA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
The ESR of the LLQ2W101MHSA capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for a 100uF capacitor in the LLQ series.
Yes, the LLQ2W101MHSA capacitor is designed to withstand high-vibration environments, with a vibration endurance of 10-2000Hz, 1.5mm amplitude.
The shelf life of the LLQ2W101MHSA capacitor is 2 years from the date of manufacture, as long as it is stored in a dry, cool place, away from direct sunlight and moisture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLQ2W101MHSA Overview

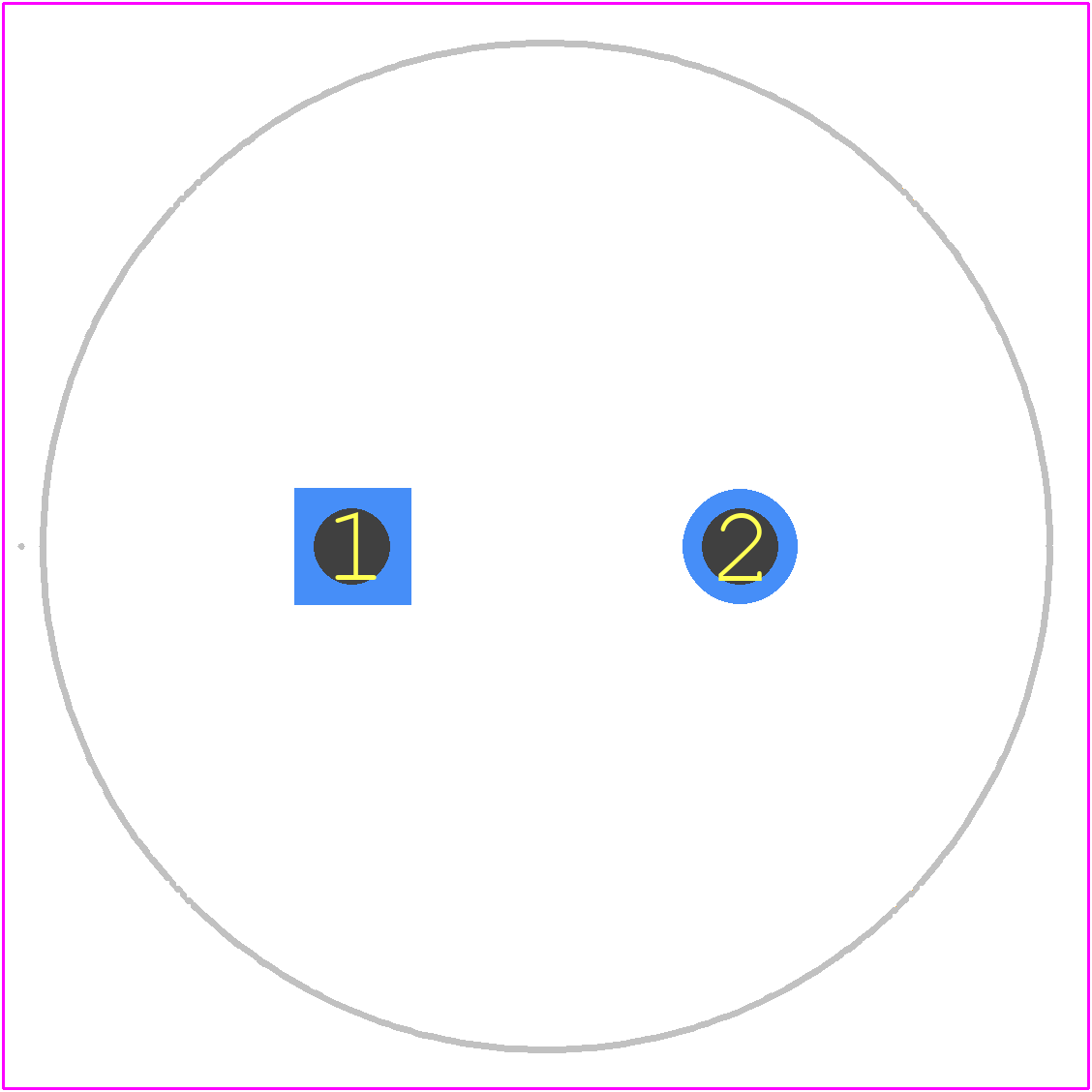

Use the download button to access the LLQ2W101MHSA schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LLQ2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
