LLS1C223MELA - Nichicon

Description: Nichicon 22000μF 16 V Aluminium Electrolytic Capacitor, LS Series 3000h 25 (Dia.) x 40mm

Download LLS1C223MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1C223MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

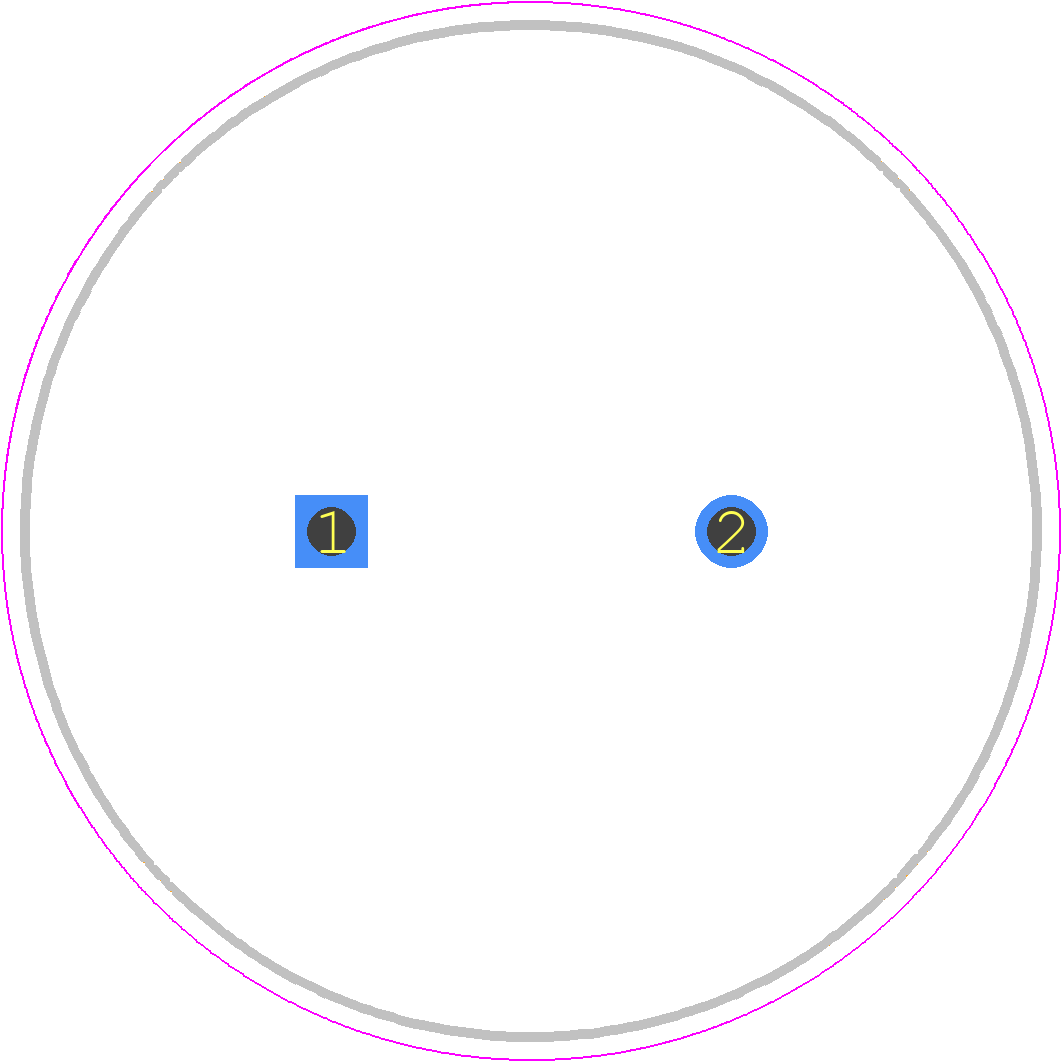

LLS1C223MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LLS1C223MELA
click to zoom
3D Models
LLS1C223MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LLS1C223MELA
click to zoom

LLS1C223MELA Details

  • Manufacturer Part Number:

    LLS1C223MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    22000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.77 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    4440 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.50

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1C223MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS1C223MELA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS1C223MELA capacitor is typically around 0.15 ohms at 100 kHz, but this value can vary depending on the frequency and temperature.
  • Yes, the LLS1C223MELA capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LLS1C223MELA capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLS1C223MELA Overview

Use the download button to access the LLS1C223MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1C, or try a keyword search, such as Aluminum Electrolytic Capacitors
