The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS1H123MELB is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS1H123MELB is designed to handle surge currents up to 100A (10μs). However, it's essential to consider the capacitor's impedance, ESR, and thermal characteristics when designing for surge current applications.
Yes, the LLS1H123MELB capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
The shelf life of the LLS1H123MELB capacitor is 2 years from the date of manufacture when stored in a dry, cool place. It's recommended to follow proper storage and handling procedures to maintain the capacitor's performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS1H123MELB Overview

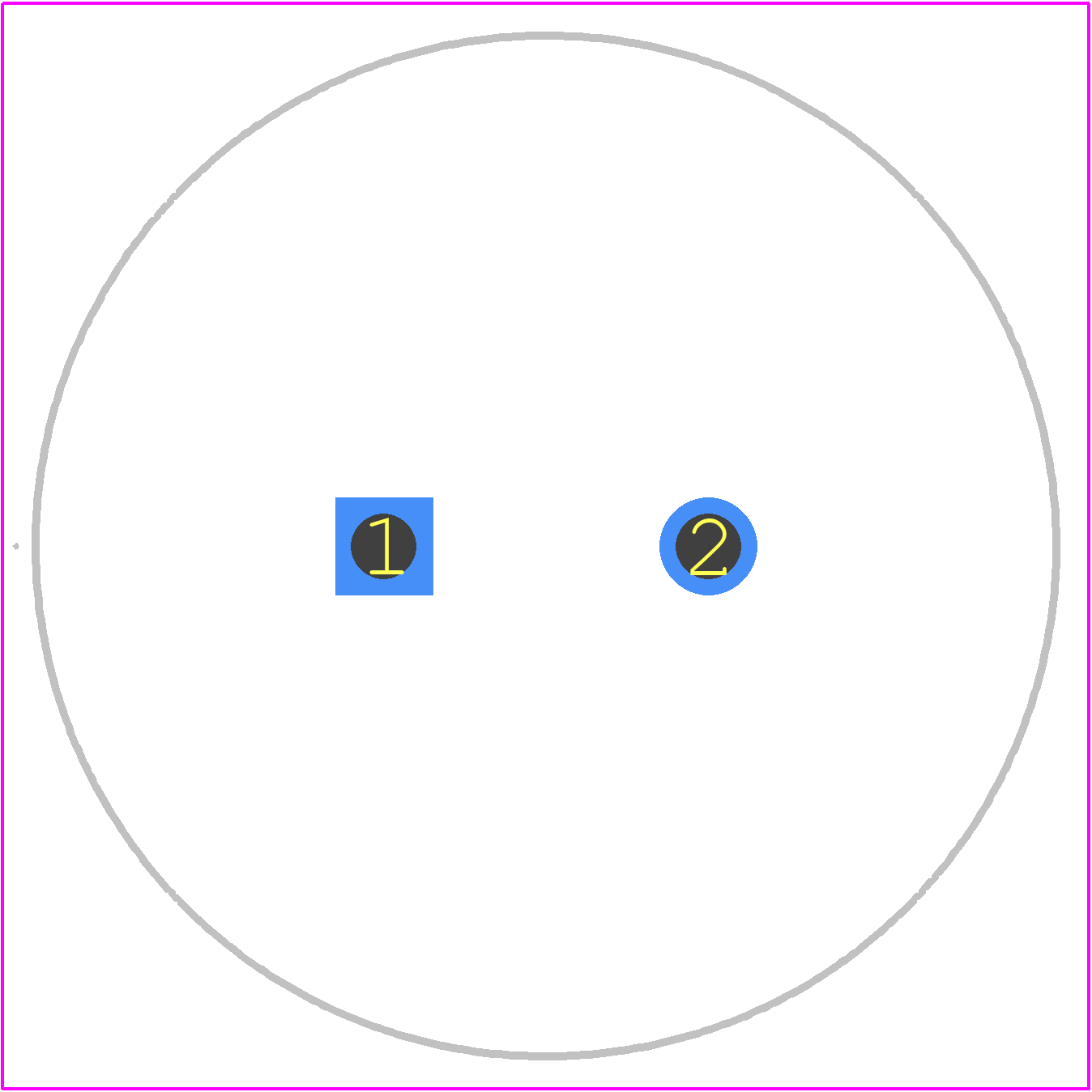

Use the download button to access the LLS1H123MELB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1H,
or try a keyword search, such as Aluminum Electrolytic Capacitors
