LLS1J103MELC - Nichicon

Description: Nichicon 10000μF 63 V Aluminium Electrolytic Capacitor, LS Series 3000h 35 (Dia.) x 40mm

Download LLS1J103MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1J103MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

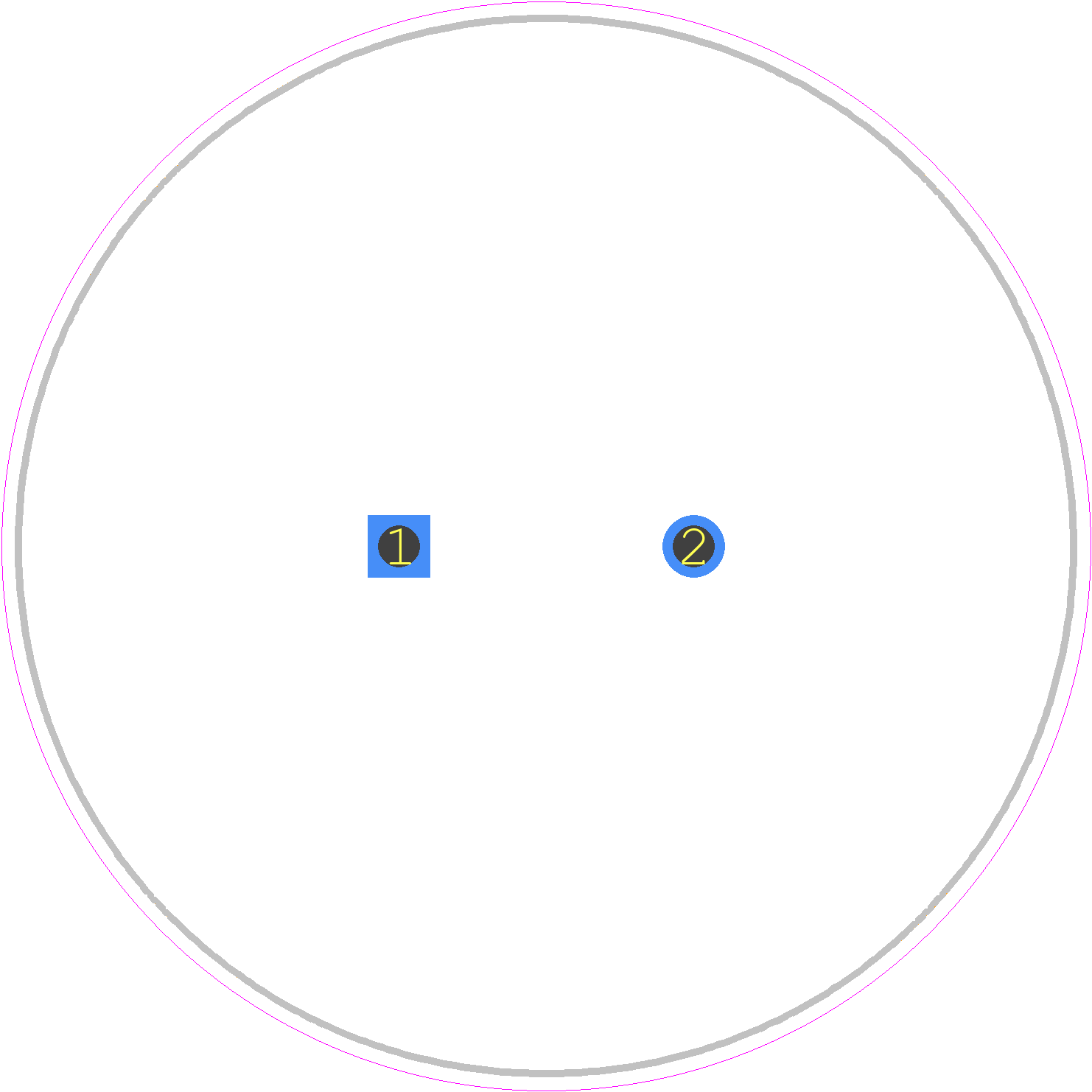

LLS1J103MELC - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - LLS (35 x 40)_1
click to zoom
3D Models
LLS1J103MELC - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - LLS (35 x 40)_1
click to zoom

LLS1J103MELC Details

  • Manufacturer Part Number:

    LLS1J103MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.38 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    5750 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1J103MELC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for LLS1J103MELC is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, LLS1J103MELC is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, making it suitable for use in high-vibration environments.
  • LLS1J103MELC is rated for operation up to 125°C, with a derating of capacitance and impedance at higher temperatures. Consult the datasheet for specific derating curves.
  • Yes, LLS1J103MELC meets the requirements for use in safety-critical applications, including automotive and industrial control systems, and is compliant with relevant safety standards such as IEC 60384-26.
  • Yes, LLS1J103MELC is designed to operate in humid environments, with a moisture resistance rating of 85°C/85% RH for 1000 hours.
