The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS1J472MELA is designed to withstand vibrations up to 10Hz to 200Hz, 1.5mm double amplitude. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS1J472MELA is designed to handle surge currents up to 100A (peak) for 300μs. However, it's essential to ensure that the capacitor is properly sized and derated to handle the expected surge currents in your application.
Yes, the LLS1J472MELA capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
The shelf life of the LLS1J472MELA capacitor is 2 years from the date of manufacture when stored in a dry, cool place. It's recommended to follow proper storage and handling procedures to ensure the capacitor remains within its specified tolerances.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS1J472MELA Overview

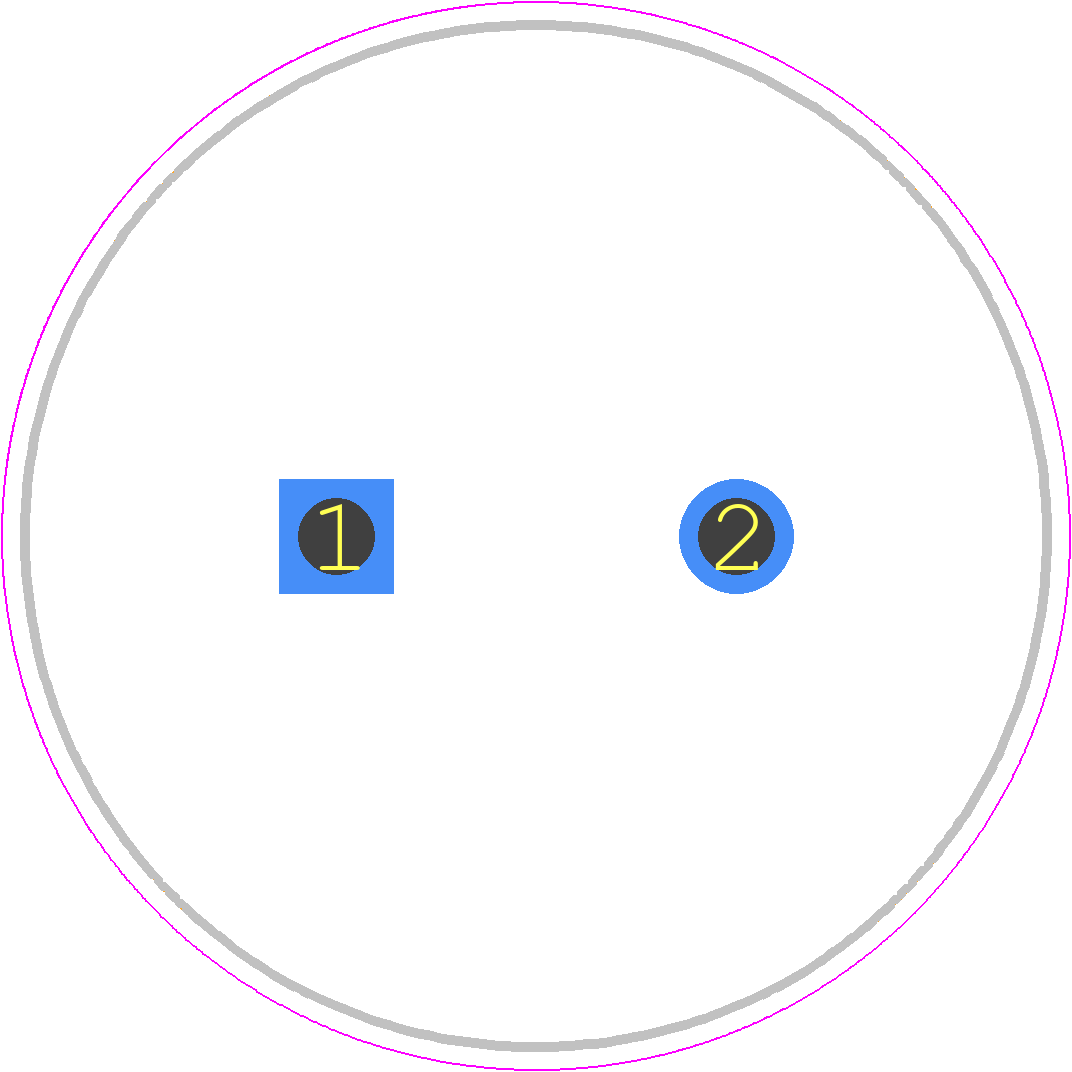

Use the download button to access the LLS1J472MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1J,
or try a keyword search, such as Aluminum Electrolytic Capacitors
