LLS1J472MELZ - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 63volts 4700uF 85c 22x50x10L/S

Download LLS1J472MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1J472MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

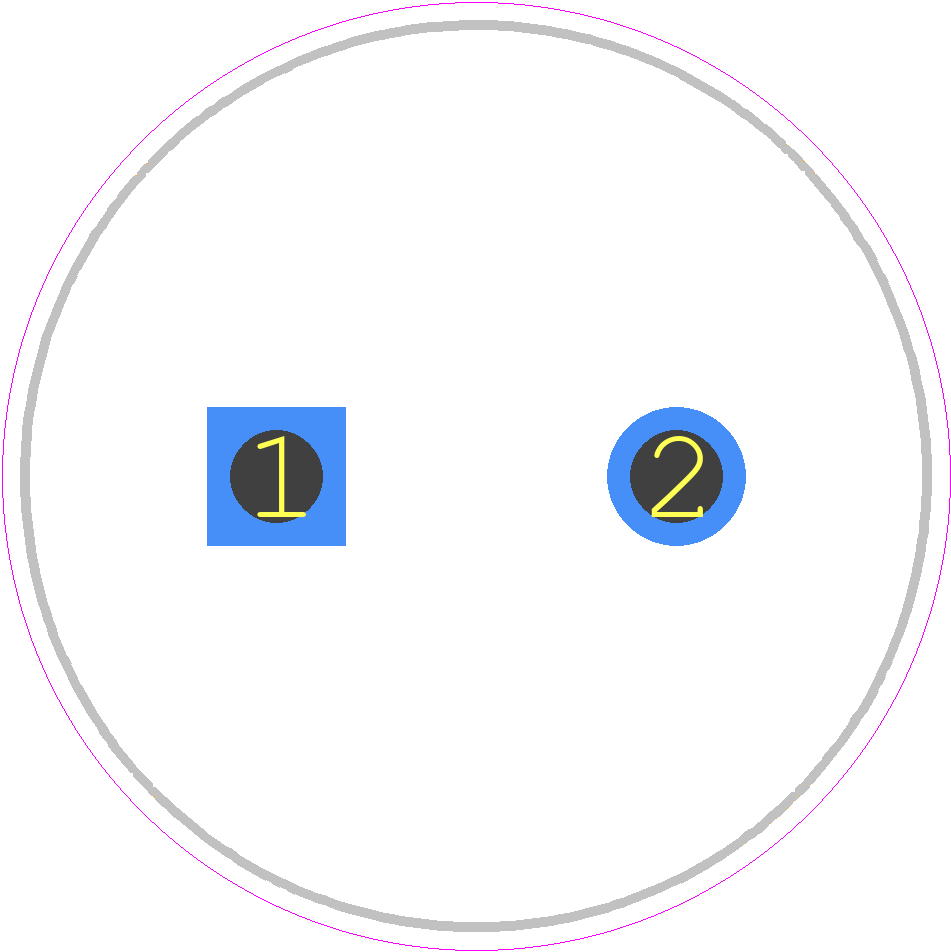

LLS1J472MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x50-d
click to zoom
3D Models
LLS1J472MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22x50-d
click to zoom

LLS1J472MELZ Details

  • Manufacturer Part Number:

    LLS1J472MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    4700 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.63 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    3690 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1J472MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS1J472MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS1J472MELZ capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for aluminum electrolytic capacitors of this type.
  • While the LLS1J472MELZ capacitor is designed to be reliable, it is not specifically designed for high-vibration or high-shock applications. If your application requires high vibration or shock resistance, you may need to consider a different capacitor or take additional design precautions.
  • The shelf life of the LLS1J472MELZ capacitor is typically 2 years or more when stored in a cool, dry place. However, it's recommended to follow the storage guidelines provided by Nichicon Corporation to ensure the capacitor remains reliable.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLS1J472MELZ Overview

Use the download button to access the LLS1J472MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1J, or try a keyword search, such as Aluminum Electrolytic Capacitors
