LLS1K103MELC - Nichicon

Description: Capacitor Electrolytic 10000uF 80V Snap Nichicon 10000μF 80 V Aluminium Electrolytic Capacitor, LS Series 3000h 35 x 50mm

Download LLS1K103MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1K103MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

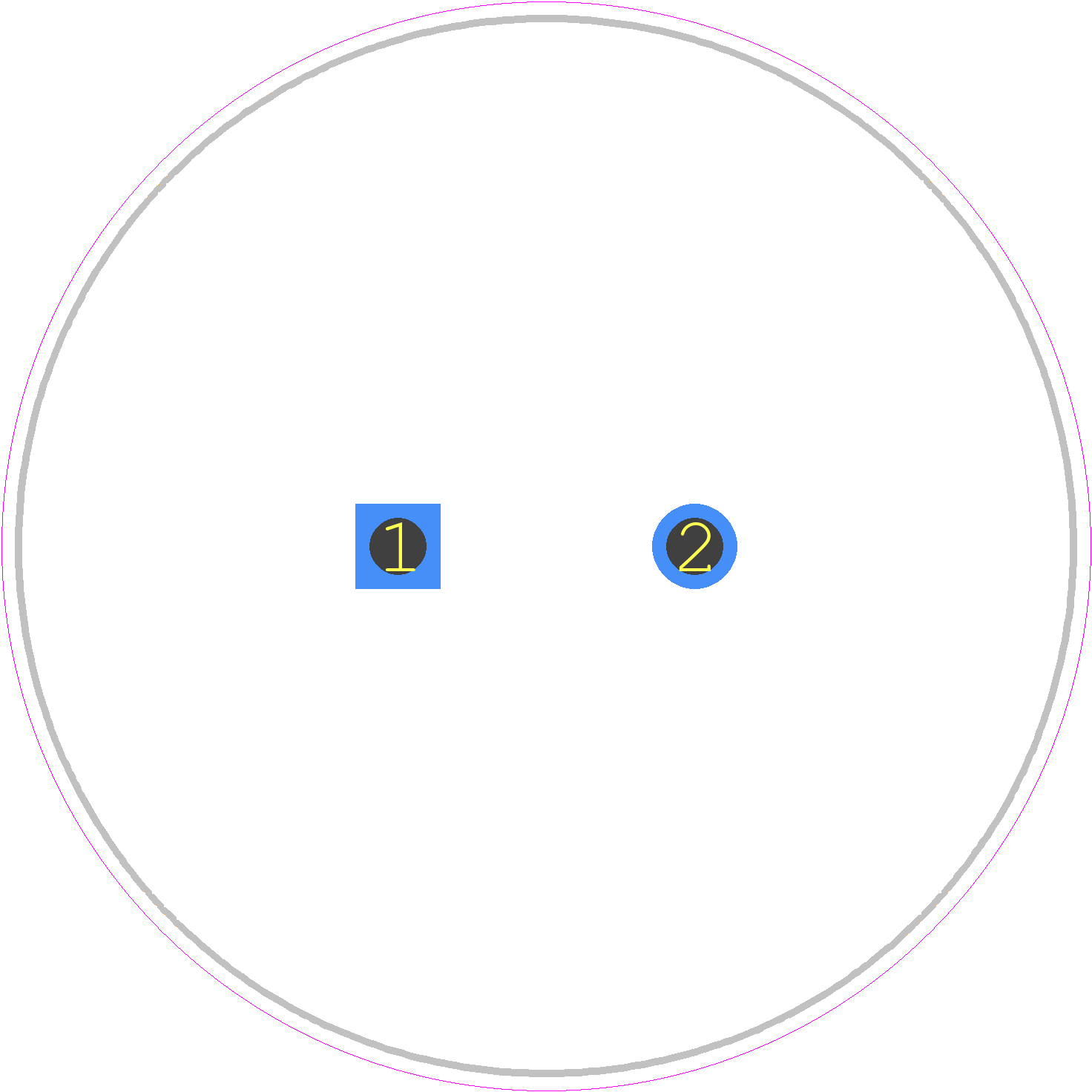

LLS1K103MELC - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 × 50
click to zoom
3D Models
LLS1K103MELC - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 35 × 50
click to zoom

LLS1K103MELC Details

  • Manufacturer Part Number:

    LLS1K103MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.68 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    6630 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1K103MELC Frequently Asked Questions (FAQs)

  • Nichicon recommends derating the voltage by 10-20% to ensure reliable operation and prevent premature failure.
  • The ESR of the LLS1K103MELC capacitor decreases with increasing frequency, but the exact values can be obtained from Nichicon's application notes or by contacting their technical support.
  • The LLS1K103MELC capacitor is rated for operation up to 105°C, but its capacitance and ESR may change significantly at high temperatures. Consult Nichicon's application notes for more information.
  • The LLS1K103MELC capacitor is designed to withstand moderate vibration and shock, but extreme conditions may affect its performance and lifespan. Consult Nichicon's application notes or technical support for more information.
  • The capacitance of the LLS1K103MELC capacitor decreases with decreasing temperature, but the exact temperature coefficient can be obtained from Nichicon's application notes or by contacting their technical support.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLS1K103MELC Overview

Use the download button to access the LLS1K103MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1K, or try a keyword search, such as Aluminum Electrolytic Capacitors
