LLS1K332MELB - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 80volts 3300uF 85c 30x30x10L/S

Download LLS1K332MELB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1K332MELB - Nichicon - PCB symbol
click to zoom
PCB Footprints

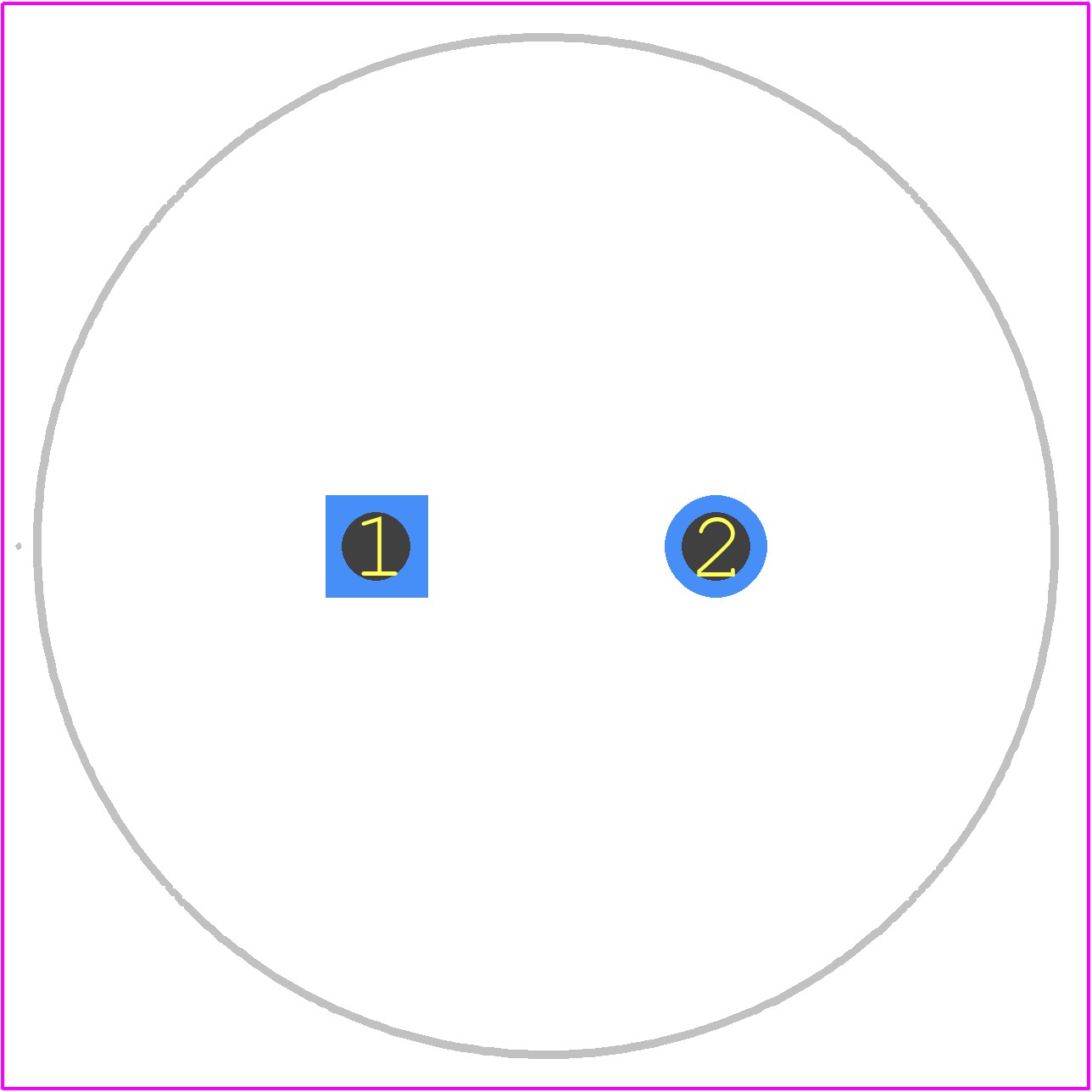

LLS1K332MELB - Nichicon PCB footprint - Other - Other - 30mm x 30mm
click to zoom
3D Models
LLS1K332MELB - Nichicon - 3D model - Other - 30mm x 30mm
click to zoom

LLS1K332MELB Details

  • Manufacturer Part Number:

    LLS1K332MELB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    3300 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.54 mA

  • Length:

    30 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    3250 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1K332MELB Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the LLS1K332MELB is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, the LLS1K332MELB is designed to withstand high-vibration environments, making it suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The LLS1K332MELB is designed to operate in temperatures up to 125°C, making it suitable for use in high-temperature environments. However, the capacitor's performance may degrade at temperatures above 105°C.
  • Yes, the LLS1K332MELB is compatible with lead-free soldering processes, making it suitable for use in RoHS-compliant applications.
  • The recommended storage condition for the LLS1K332MELB is in a dry, cool place, away from direct sunlight and moisture, with a temperature range of 5°C to 30°C and humidity below 70%.
