The recommended soldering temperature is 260°C (500°F) for 3 seconds or less, and 240°C (464°F) for 5 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS1K682MELB is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS1K682MELB is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. However, the effectiveness of noise reduction depends on the specific application and circuit design. It's recommended to consult with a qualified engineer to ensure proper noise reduction techniques are implemented.
The LLS1K682MELB has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, its performance and lifespan may be affected. It's recommended to consult with Nichicon Corporation or a qualified engineer to determine the capacitor's suitability for high-temperature applications.
The LLS1K682MELB has a moisture resistance rating of 85°C, 85% RH, 1000 hours. While it can operate in humid environments, it's recommended to take precautions to prevent moisture ingress and ensure the capacitor is properly sealed or coated to maintain its performance and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS1K682MELB Overview

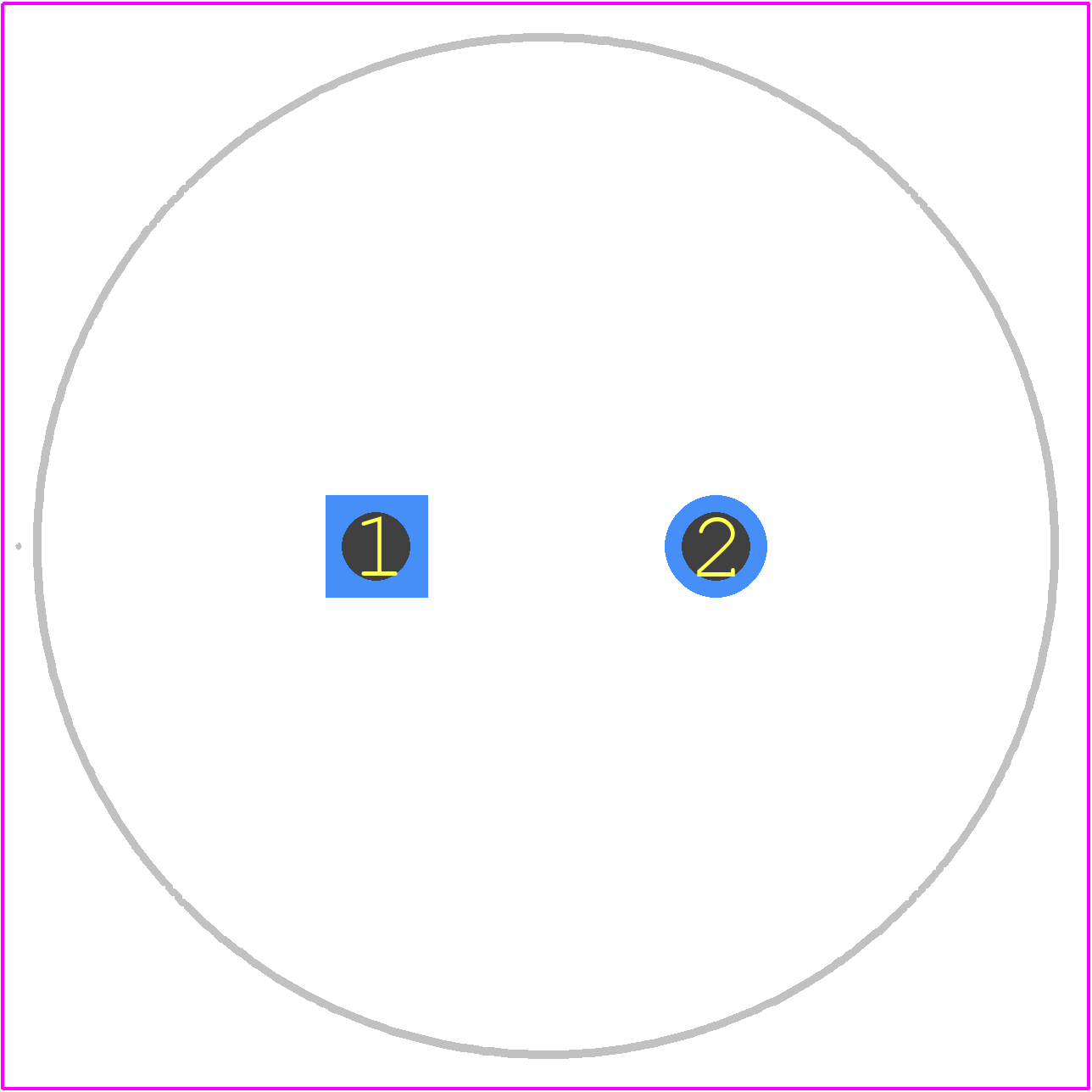

Use the download button to access the LLS1K682MELB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1K,
or try a keyword search, such as Aluminum Electrolytic Capacitors
