LLS1V103MELZ - Nichicon

Description: Aluminum Electrolytic Capacitors - Snap In 35volts 10000uF 85c 22x50x10L/S

Download LLS1V103MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS1V103MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

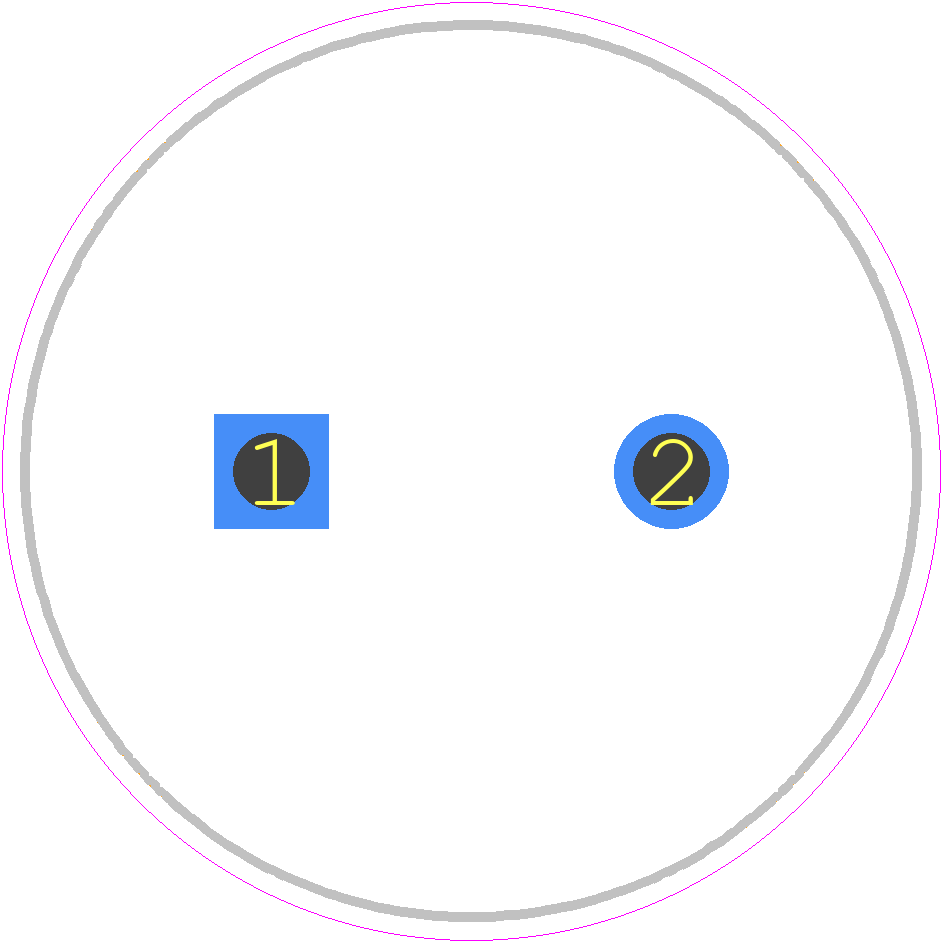

LLS1V103MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x50
click to zoom
3D Models
LLS1V103MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22x50
click to zoom

LLS1V103MELZ Details

  • Manufacturer Part Number:

    LLS1V103MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    7

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.77 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    3750 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.35

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS1V103MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS1V103MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS1V103MELZ capacitor is not explicitly stated in the datasheet, but it is typically around 100-200 mΩ for a 100 μF capacitor of this type.
  • The LLS1V103MELZ capacitor has a maximum operating temperature of 105°C (221°F), so it can be used in high-temperature applications, but its performance and lifespan may be affected.
  • Yes, the LLS1V103MELZ capacitor is suitable for use in audio equipment due to its low ESR and high ripple current rating, making it suitable for filtering and decoupling applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLS1V103MELZ Overview

Use the download button to access the LLS1V103MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS1V, or try a keyword search, such as Aluminum Electrolytic Capacitors
