The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS2A222MELZ is designed to withstand vibrations up to 10Hz to 2000Hz, 10mm double amplitude, as per IEC 60068-2-6. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS2A222MELZ is designed to handle surge currents up to 100A, 1000μs, as per IEC 61071. However, it's essential to ensure that the capacitor is properly sized and derated to handle the specific surge current requirements of your application.
Yes, the LLS2A222MELZ capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements of EU directives 2011/65/EU and (EC) No 1907/2006, respectively.
The shelf life of the LLS2A222MELZ capacitor is 2 years from the date of manufacture, as per Nichicon Corporation's storage guidelines. It's recommended to store the capacitors in a cool, dry place, away from direct sunlight and moisture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2A222MELZ Overview

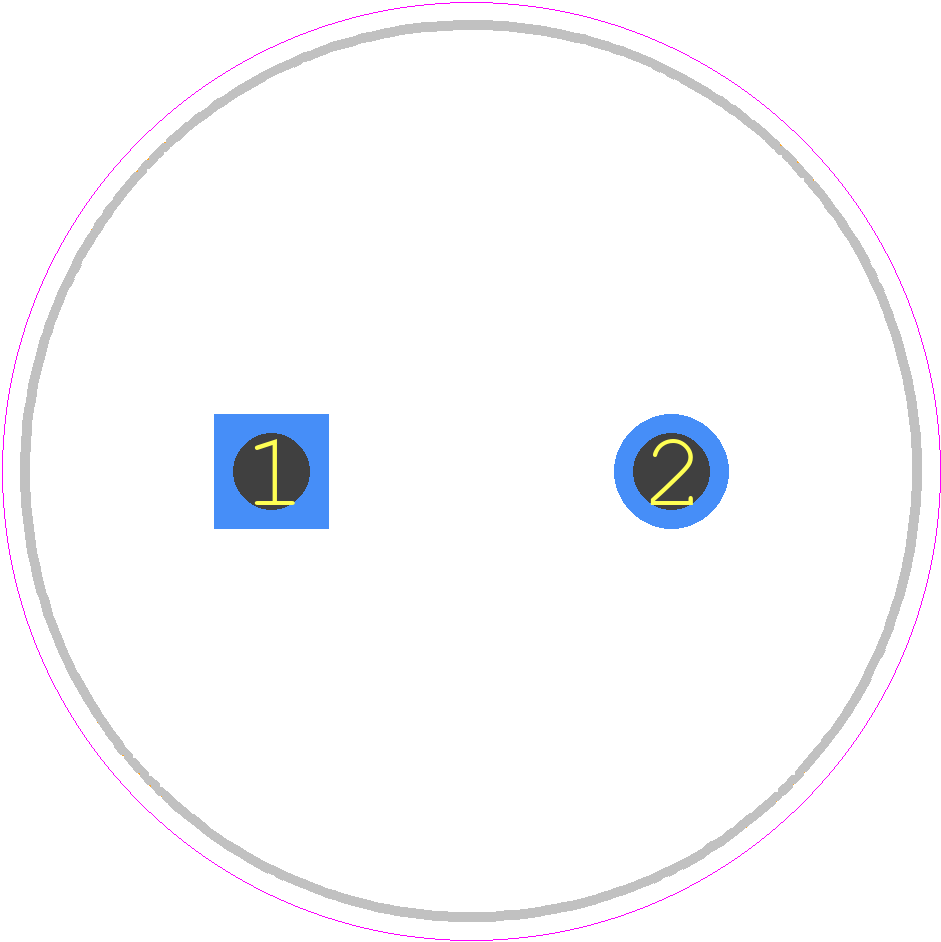

Use the download button to access the LLS2A222MELZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2A,
or try a keyword search, such as Aluminum Electrolytic Capacitors
