LLS2A332MELA - Nichicon

Description: Nichicon 3300μF 100 V Aluminium Electrolytic Capacitor, LS Series 3000h 25 (Dia.) x 50mm

Download LLS2A332MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS2A332MELA - Nichicon - PCB symbol
click to zoom

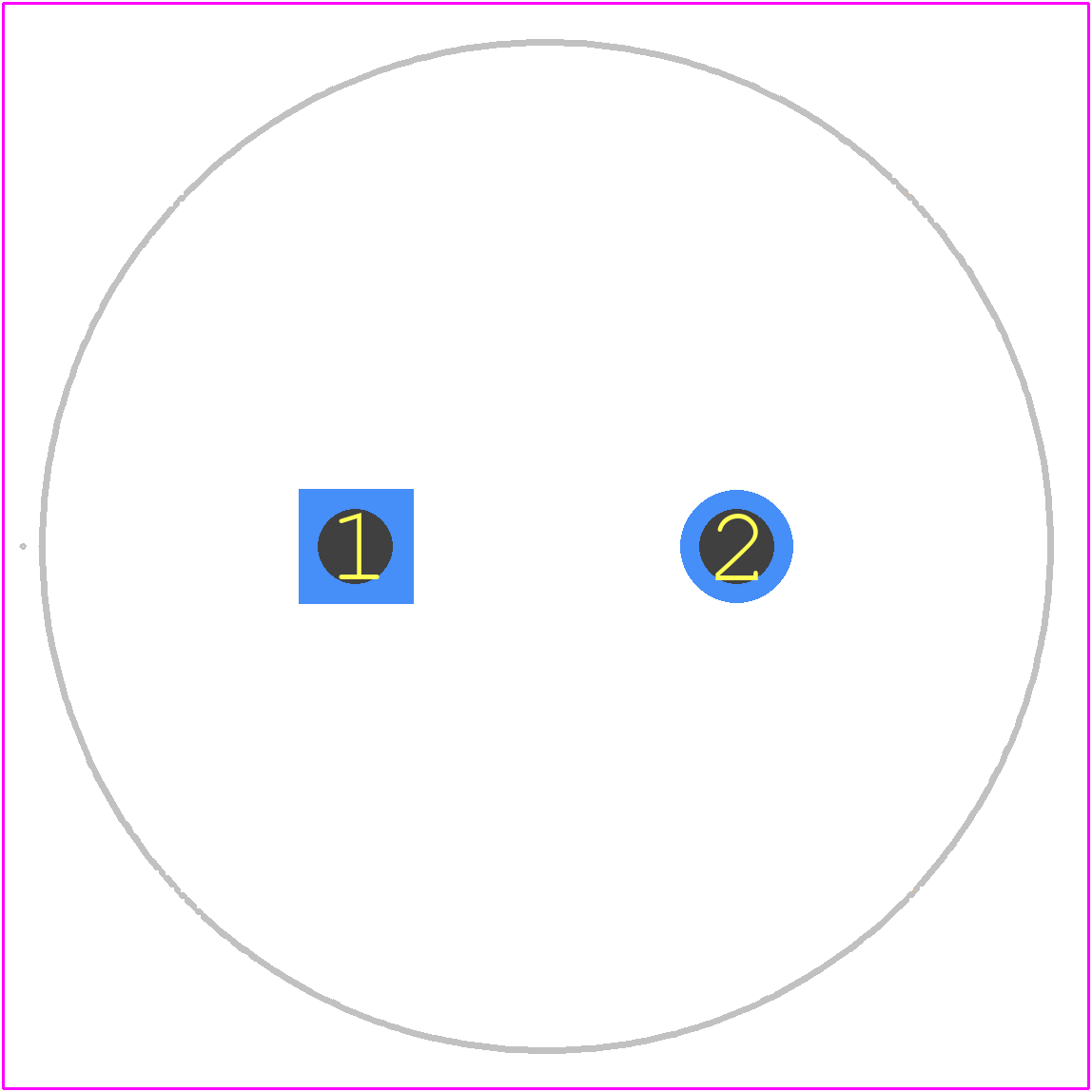

PCB Footprints
LLS2A332MELA - Nichicon PCB footprint - Other - Other - 25 × 50mm
click to zoom
3D Models
LLS2A332MELA - Nichicon - 3D model - Other - 25 × 50mm
click to zoom

LLS2A332MELA Details

  • Manufacturer Part Number:

    LLS2A332MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    3300 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.72 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    4150 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS2A332MELA Frequently Asked Questions (FAQs)

  • Nichicon recommends a voltage derating of 80% to ensure reliable operation and to prevent overheating.
  • The ESR of the LLS2A332MELA capacitor decreases with increasing frequency, but the exact values can be obtained from Nichicon's application notes or by contacting their technical support.
  • The LLS2A332MELA capacitor is rated for operation up to 105°C, but its performance may degrade at higher temperatures. Consult Nichicon's application notes for guidance on high-temperature use.
  • The LLS2A332MELA capacitor is designed to withstand moderate vibration and shock, but extreme conditions may require additional mechanical support or specialized mounting. Consult Nichicon's application notes for guidance.
  • The capacitance of the LLS2A332MELA capacitor decreases with decreasing temperature, but the exact temperature coefficient can be obtained from Nichicon's application notes or by contacting their technical support.
