LLS2A562MELC - Nichicon

Description: Nichicon 5600μF 100 V Aluminium Electrolytic Capacitor, LS Series 3000h 35 x 45mm

Download LLS2A562MELC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS2A562MELC - Nichicon - PCB symbol
click to zoom
PCB Footprints

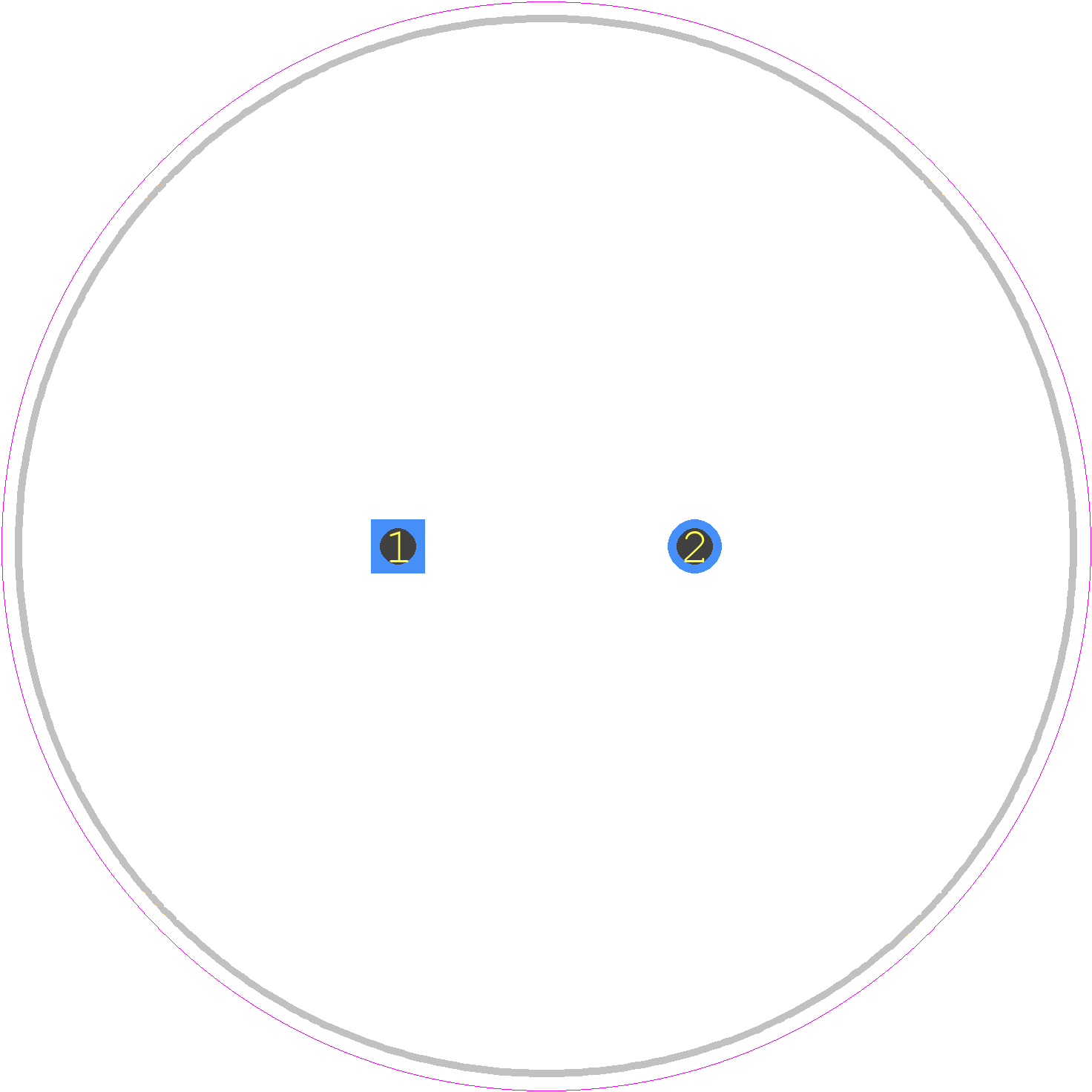

LLS2A562MELC - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35 x 45mm
click to zoom
3D Models
LLS2A562MELC - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 35 x 45mm
click to zoom

LLS2A562MELC Details

  • Manufacturer Part Number:

    LLS2A562MELC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    5600 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.24 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    100 V

  • Ripple Current:

    5880 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.20

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS2A562MELC Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS2A562MELC is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude, and can be used in high-vibration environments with proper mounting and installation.
  • The LLS2A562MELC is designed to handle surge currents up to 100A, but it's recommended to derate the capacitor's voltage rating by 10% to ensure reliable operation.
  • Yes, the LLS2A562MELC capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly designs.
  • The shelf life of the LLS2A562MELC capacitor is 2 years from the date of manufacture, but it's recommended to follow proper storage and handling procedures to ensure the capacitor's performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LLS2A562MELC Overview

Use the download button to access the LLS2A562MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2A, or try a keyword search, such as Aluminum Electrolytic Capacitors
