LLS2C102MELZ - Nichicon

Description: Cap Aluminum Lytic 1000uF 160V 20% (22 X 45mm) Snap-In 10mm 3020mA 3000h 85C Bulk

Download LLS2C102MELZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS2C102MELZ - Nichicon - PCB symbol
click to zoom
PCB Footprints

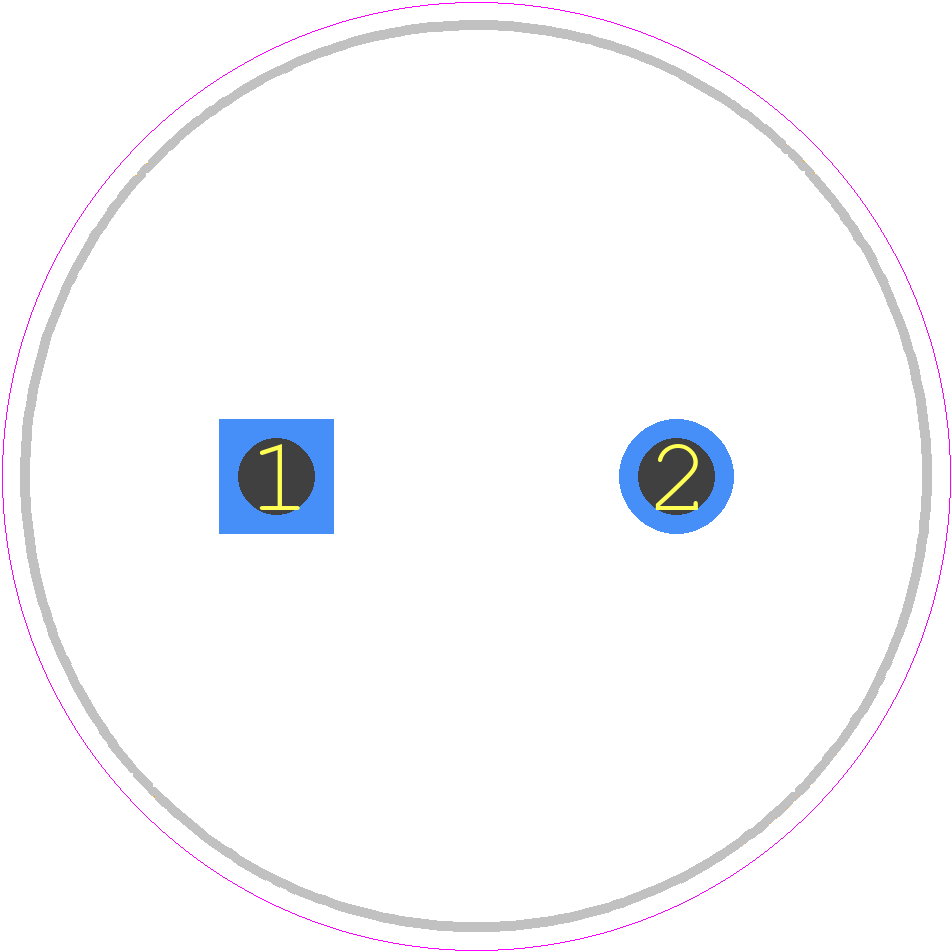

LLS2C102MELZ - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22x45-
click to zoom
3D Models
LLS2C102MELZ - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 22x45-
click to zoom

LLS2C102MELZ Details

  • Manufacturer Part Number:

    LLS2C102MELZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.2 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    160 V

  • Ripple Current:

    3020 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS2C102MELZ Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS2C102MELZ capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS2C102MELZ capacitor is typically around 0.1 ohms at 100 kHz, but this value can vary depending on the frequency and temperature.
  • Yes, the LLS2C102MELZ capacitor is designed to withstand high-vibration environments and is suitable for use in applications such as automotive, industrial, and aerospace systems.
  • The shelf life of the LLS2C102MELZ capacitor is typically 2 years from the date of manufacture, but this can vary depending on storage conditions and handling practices.
