The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to follow the soldering profile recommended by the manufacturer or the specific assembly process.
Yes, the LLS2D221MELY capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, cadmium, hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE) above the maximum allowed levels.
The ESR of the LLS2D221MELY capacitor is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mohms based on the capacitor's size and material. However, it's recommended to consult with the manufacturer or a reliable source for the exact ESR value.
The LLS2D221MELY capacitor is designed for general-purpose use and may not be suitable for high-vibration or high-shock applications. Nichicon Corporation offers specialized capacitors with enhanced vibration and shock resistance, such as the NV series, which may be more suitable for such applications.
The shelf life of the LLS2D221MELY capacitor is typically 2 years from the date of manufacture, but it can be extended up to 5 years or more if stored properly in a cool, dry place, away from direct sunlight and moisture.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
LLS2D221MELY Overview

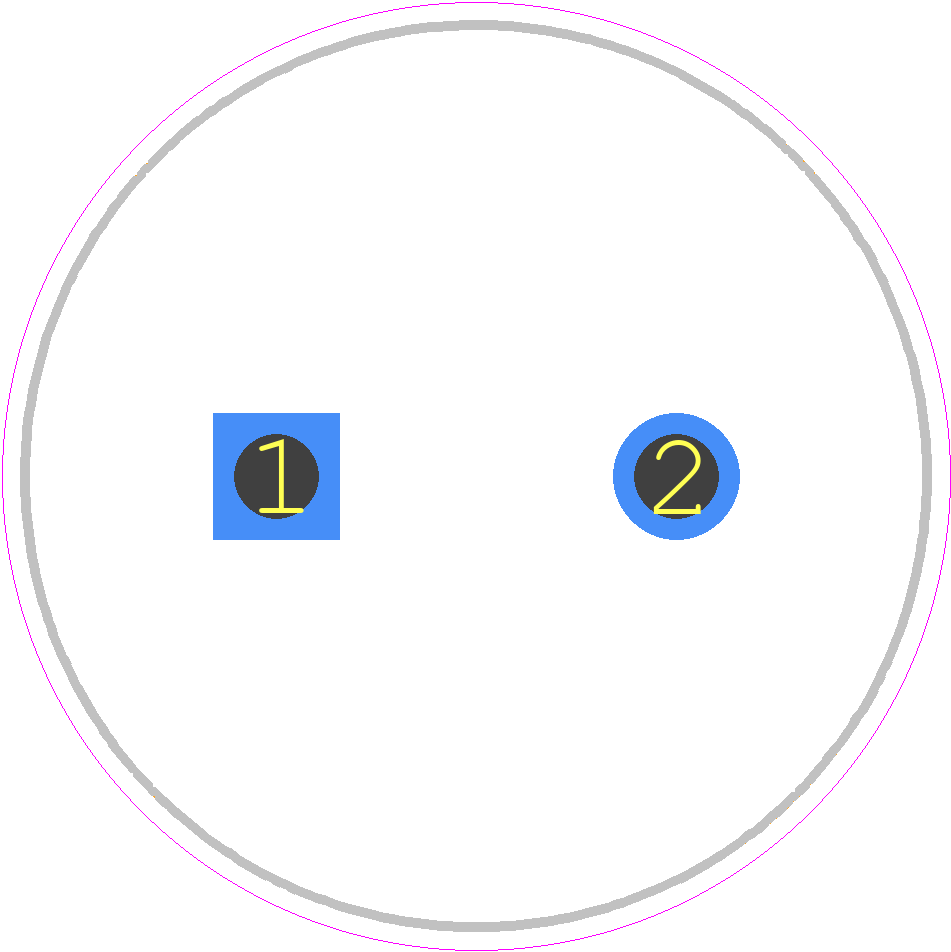

Use the download button to access the LLS2D221MELY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2D,
or try a keyword search, such as Aluminum Electrolytic Capacitors
