LLS2E471MELA - Nichicon

Description: Nichicon 470μF 250 V Aluminium Electrolytic Capacitor, LS Series 3000h 25 (Dia.) x 35mm

Download LLS2E471MELA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LLS2E471MELA - Nichicon - PCB symbol
click to zoom
PCB Footprints

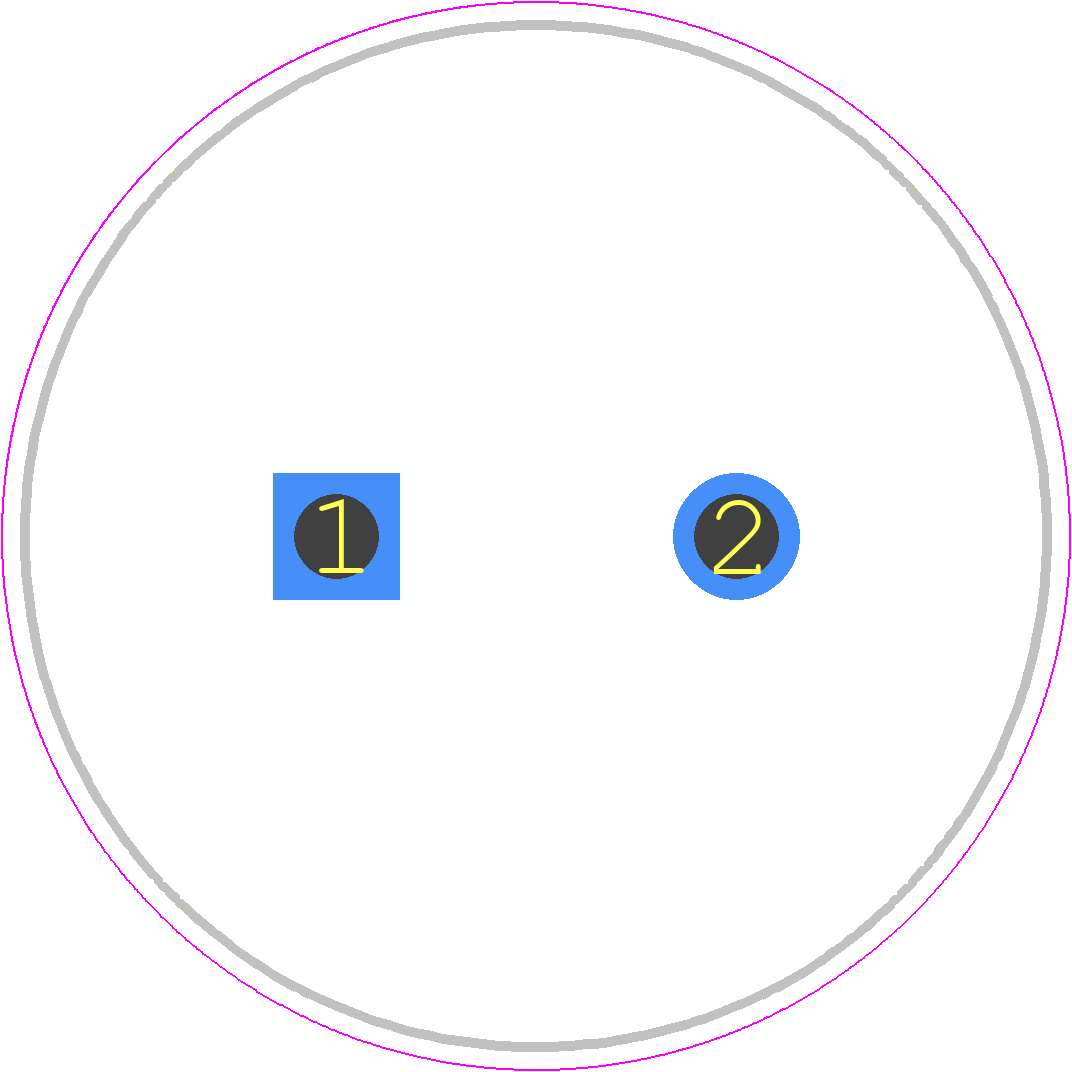

LLS2E471MELA - Nichicon PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom
3D Models
LLS2E471MELA - Nichicon - 3D model - Capacitor, Polarized Radial Diameter - 25 x 35
click to zoom

LLS2E471MELA Details

  • Manufacturer Part Number:

    LLS2E471MELA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CAN

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00

  • Manufacturer:

    Nichicon Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.02 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    2150 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.15

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

LLS2E471MELA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds or less to prevent damage to the capacitor.
  • Yes, the LLS2E471MELA capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances such as lead, mercury, or cadmium.
  • The ESR of the LLS2E471MELA capacitor is not explicitly stated in the datasheet, but it is typically around 10-20 mohms for aluminum electrolytic capacitors of this type.
  • While the LLS2E471MELA capacitor is designed to be reliable, it is not specifically designed for high-vibration or high-shock applications. If your application requires high vibration or shock resistance, you may need to consider a different capacitor or take additional design precautions.
  • The shelf life of the LLS2E471MELA capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.
