The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS2G121MELA capacitor is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
The LLS2G121MELA capacitor is rated for operation up to 125°C (257°F). While it can withstand high temperatures, its capacitance and ESR may degrade over time. It's essential to consider the temperature derating factors and perform thermal analysis to ensure the capacitor meets the requirements of your application.
Yes, the LLS2G121MELA capacitor is designed and manufactured to meet the requirements of high-reliability applications, including automotive, industrial, and medical devices. It's essential to follow the recommended usage and storage guidelines to ensure the capacitor meets the specific requirements of your application.
The LLS2G121MELA capacitor is designed to withstand humid environments, but it's essential to follow the recommended storage and usage guidelines to prevent moisture ingress. The capacitor should be stored in a dry environment, and it's recommended to bake the capacitor at 125°C (257°F) for 24 hours before use in humid environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2G121MELA Overview

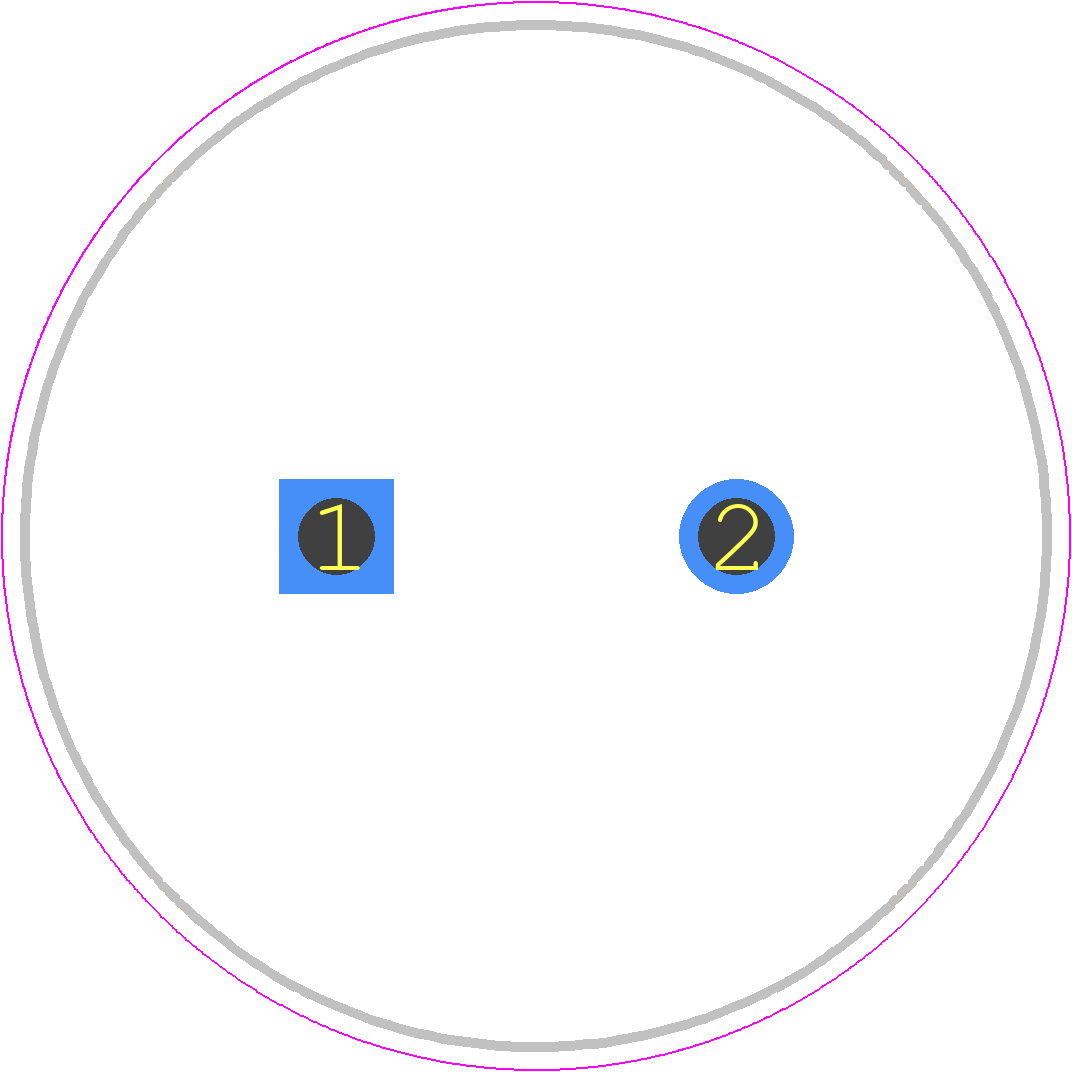

Use the download button to access the LLS2G121MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2G,
or try a keyword search, such as Aluminum Electrolytic Capacitors
