The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS2V821MELC capacitor is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS2V821MELC capacitor is rated for operation up to 125°C (257°F). While it can withstand high temperatures, its capacitance and ESR may degrade over time. It's essential to consider the temperature derating factors and consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific temperature requirements of your application.
Yes, the LLS2V821MELC capacitor is designed for high-reliability applications and meets the requirements of various industry standards, including IEC 60384-4 and MIL-C-39006. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific reliability requirements of your application.
The LLS2V821MELC capacitor is designed to withstand humid environments, but it's recommended to follow the recommended storage and handling procedures to prevent moisture absorption. It's also essential to ensure the capacitor is properly sealed and protected from moisture in the end application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2V821MELC Overview

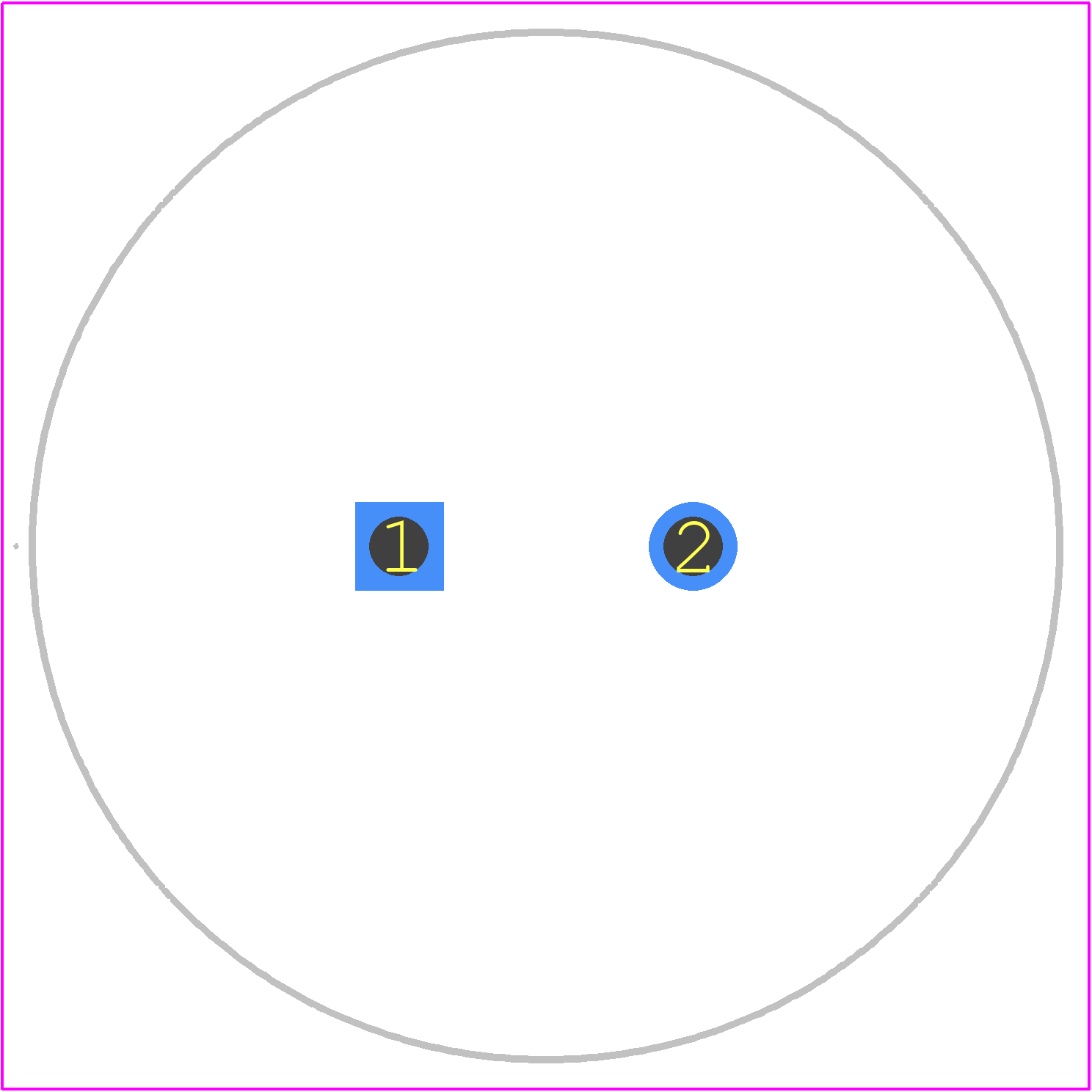

Use the download button to access the LLS2V821MELC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2V,
or try a keyword search, such as Aluminum Electrolytic Capacitors
