The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS2W121MELA is designed to withstand vibrations up to 10Hz to 2000Hz, 1.5mm double amplitude. However, it's recommended to perform additional testing and validation to ensure the capacitor meets the specific requirements of your application.
The LLS2W121MELA is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. However, the actual noise reduction performance may vary depending on the specific application and circuit design.
The LLS2W121MELA has a maximum operating temperature of 125°C (257°F). While it can operate at high temperatures, its performance and lifespan may be affected. It's recommended to derate the capacitor's voltage and current ratings according to the temperature derating curve provided in the datasheet.
The LLS2W121MELA has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow proper storage and handling procedures to prevent moisture absorption, and to ensure the capacitor is properly sealed or coated to prevent moisture ingress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2W121MELA Overview

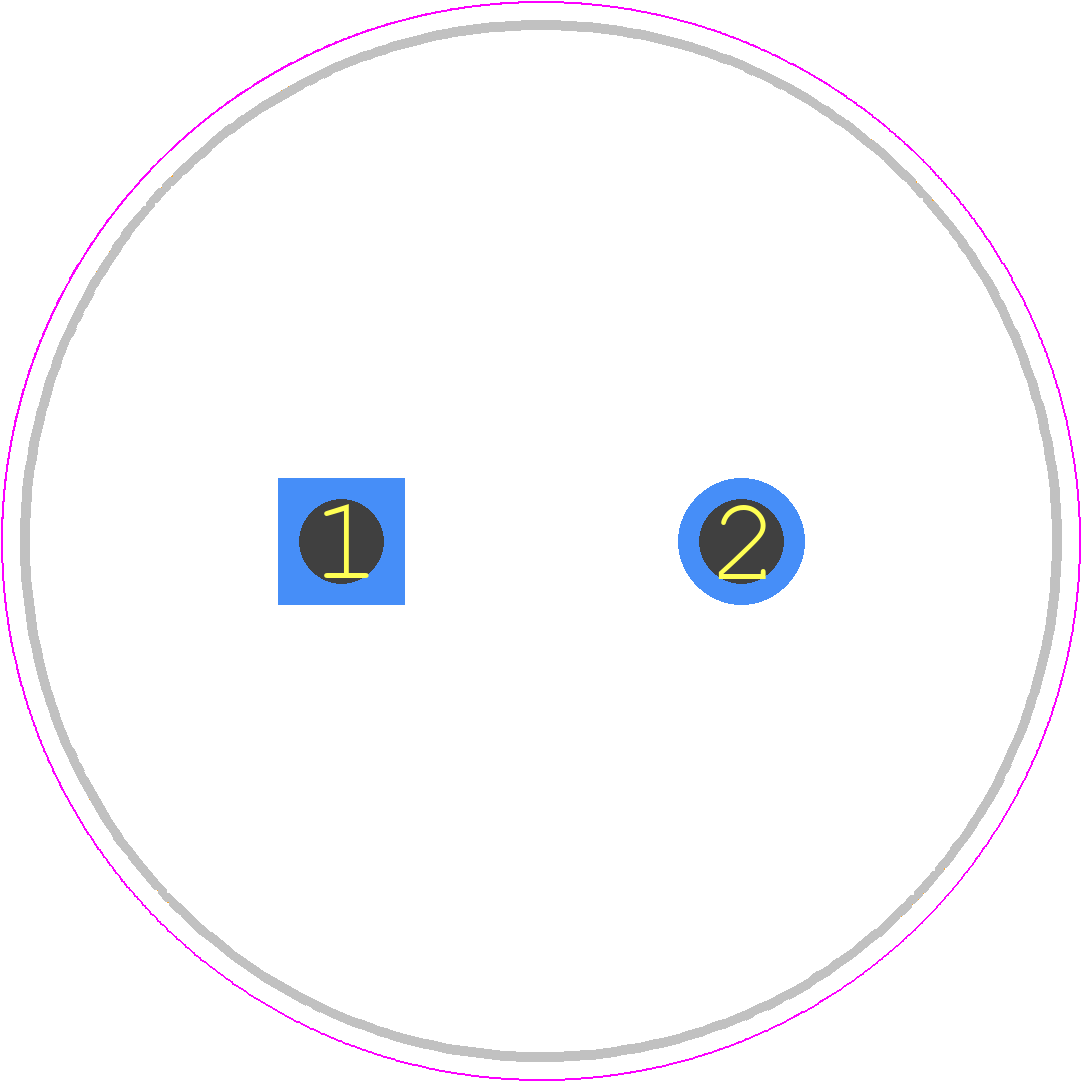

Use the download button to access the LLS2W121MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
