The recommended soldering temperature is 260°C (500°F) and the recommended soldering time is 3 seconds to 5 seconds. However, it's always best to follow the specific soldering guidelines provided by Nichicon Corporation or consult with their technical support team.
Yes, the LLS2W181MELA is designed to withstand high-vibration environments. Nichicon Corporation specifies a vibration endurance of 10-2000Hz, 1.5mm amplitude, and 3 hours per axis. However, it's essential to consult with Nichicon Corporation or perform your own vibration testing to ensure the capacitor meets your specific application requirements.
According to Nichicon Corporation, the LLS2W181MELA can withstand high-temperature storage up to 125°C (257°F) for 1000 hours. However, it's crucial to follow proper storage and handling procedures to prevent damage or degradation of the capacitor.
Yes, the LLS2W181MELA capacitor is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the requirements for lead-free and environmentally friendly components.
The ESR of the LLS2W181MELA capacitor is not explicitly stated in the datasheet. However, Nichicon Corporation provides ESR values for similar capacitors in the same series. For the LLS2W181MELA, the ESR is approximately 0.02Ω at 100kHz and 20°C (68°F). It's recommended to consult with Nichicon Corporation or perform your own measurements to determine the ESR for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2W181MELA Overview

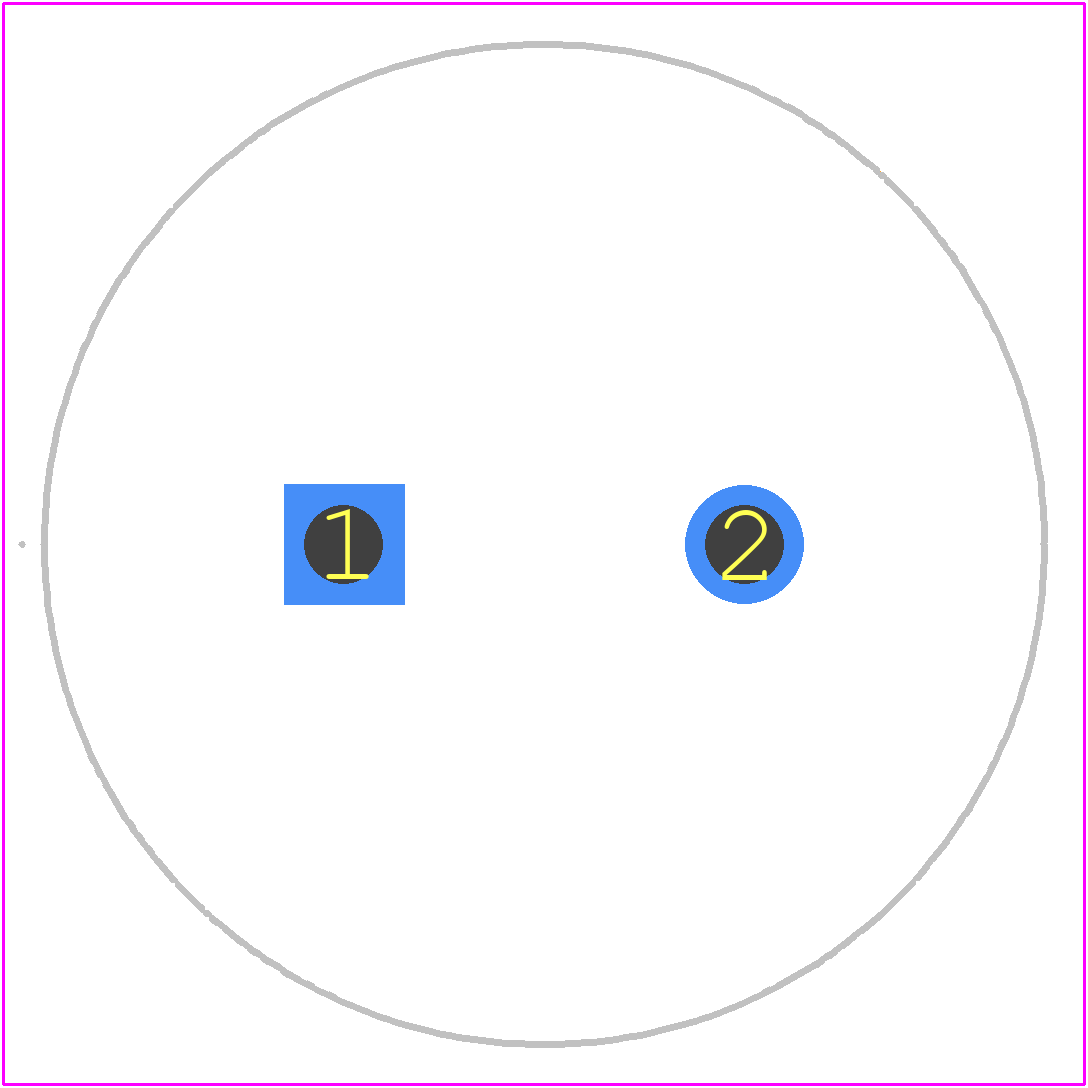

Use the download button to access the LLS2W181MELA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
