The recommended soldering temperature is 260°C (500°F) for 10 seconds or less, and 240°C (464°F) for 20 seconds or less. It's essential to follow the recommended soldering profile to prevent damage to the capacitor.
Yes, the LLS2W680MELY is designed to withstand vibrations up to 10Hz to 2000Hz, 10G acceleration. However, it's recommended to consult with Nichicon Corporation or a qualified engineer to ensure the capacitor meets the specific vibration requirements of your application.
The LLS2W680MELY is designed to reduce high-frequency noise due to its low equivalent series resistance (ESR) and high resonance frequency. However, the actual noise reduction performance may vary depending on the specific application and circuit design.
Yes, the LLS2W680MELY capacitor is compliant with the RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in environmentally friendly and sustainable designs.
It's recommended to store LLS2W680MELY capacitors in a dry, cool place with a temperature range of 5°C to 30°C (41°F to 86°F) and humidity below 70%. Avoid storing them in direct sunlight or near heat sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LLS2W680MELY Overview

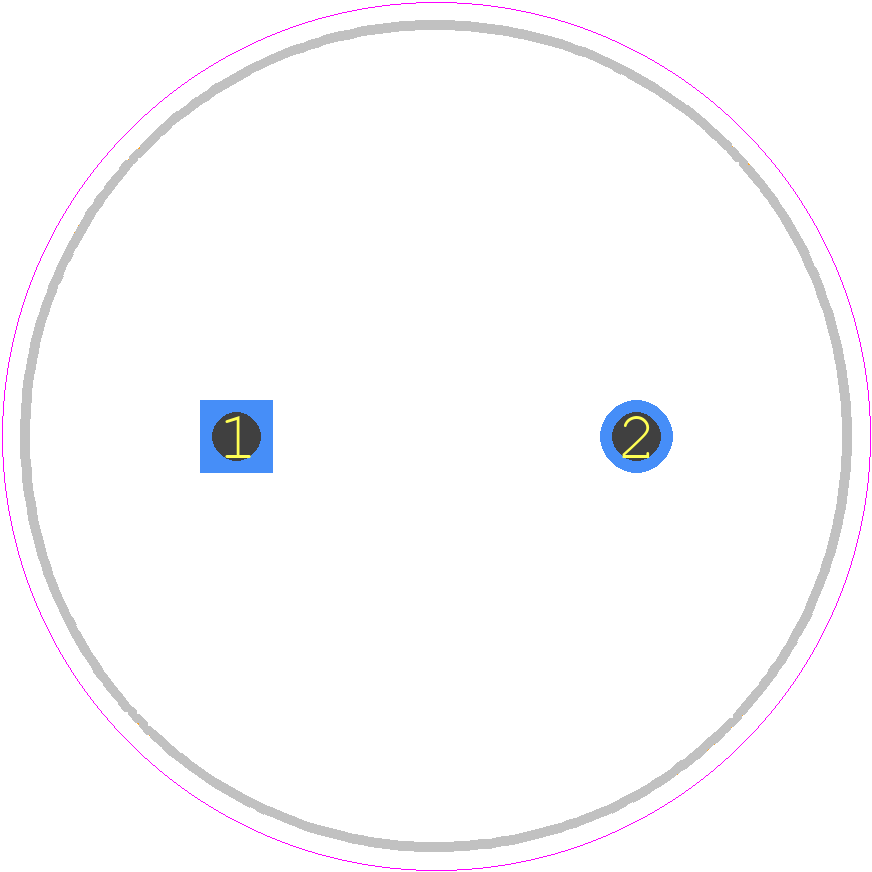

Use the download button to access the LLS2W680MELY schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LLS2W,
or try a keyword search, such as Aluminum Electrolytic Capacitors
