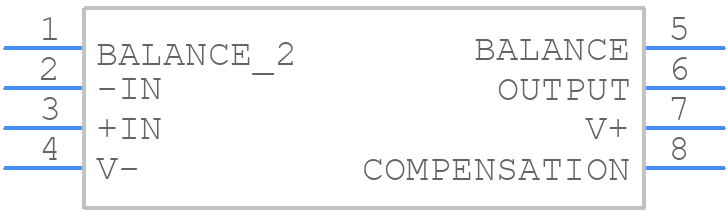

LM101AHLQMLV - Texas Instruments

LM101AHLQMLV Details

• Manufacturer Part Number:

  LM101AHLQMLV

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  BCY

• Pin Count:

  8

• Country Of Origin:

  USA

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  0.1 µA

• Bias Current-Max (IIB) @25C:

  0.075 µA

• Common-mode Reject Ratio-Min:

  80 dB

• Common-mode Reject Ratio-Nom:

  96 dB

• Frequency Compensation:

  NO

• Input Offset Current-Max (IIO):

  0.01 µA

• Input Offset Voltage-Max:

  2000 µV

• JESD-30 Code:

  O-MBCY-W8

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -22 V

• Neg Supply Voltage-Nom (Vsup):

  -20 V

• Number of Functions:

  1

• Number of Terminals:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Package Body Material:

  METAL

• Package Code:

  TO-99

• Package Equivalence Code:

  CAN8,.2

• Package Shape:

  ROUND

• Package Style:

  CYLINDRICAL

• Packing Method:

  TRAY

• Power:

  YES

• Programmable Power:

  NO

• Qualification Status:

  Not Qualified

• Screening Level:

  MIL-PRF-38535 Class V

• Slew Rate-Min:

  0.2 V/us

• Slew Rate-Nom:

  0.3 V/us

• Supply Current-Max:

  3.5 mA

• Supply Voltage Limit-Max:

  22 V

• Supply Voltage-Nom (Vsup):

  20 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  MILITARY

• Terminal Form:

  WIRE

• Terminal Position:

  BOTTOM

• Total Dose:

  50K Rad(Si) V

• Unity Gain BW-Nom:

  1000

• Voltage Gain-Min:

  10000

• Wideband:

  NO
