- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LM1036M
- Part Number LM1036M
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - DW
- Released Date Apr 16, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LM1036M Details
-
Manufacturer Part Number:
LM1036M
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-20
-
Pin Count:
20
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Channel Separation:
75 dB
LM1036M Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a star-ground configuration, with the analog and digital grounds separated and connected at a single point near the LM1036M. Additionally, keep the input and output traces short and away from noise sources, and use a solid ground plane to reduce electromagnetic interference.
-
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, check that the output capacitor is properly sized and that the feedback resistors are within the recommended range. If oscillations occur, try adding a small capacitor (e.g., 10nF) in parallel with the output capacitor to improve stability.
-
While the datasheet specifies a maximum input voltage of 12V, it's recommended to limit the input voltage to 10V to ensure reliable operation and prevent damage to the internal components.
-
The LM1036M is rated for operation up to 125°C, but its performance may degrade at high temperatures. Be sure to derate the output current and voltage according to the temperature derating curve in the datasheet, and consider using a heat sink or thermal management system to keep the device within its recommended operating temperature range.
-
Start by checking the input voltage, output voltage, and output current to ensure they are within the recommended ranges. Verify that the feedback resistors and output capacitor are properly sized and connected. Use an oscilloscope to check for oscillations or noise on the output, and consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
Trust Checks
Community Provided
System Verified
Community Approved
LM1036M Overview

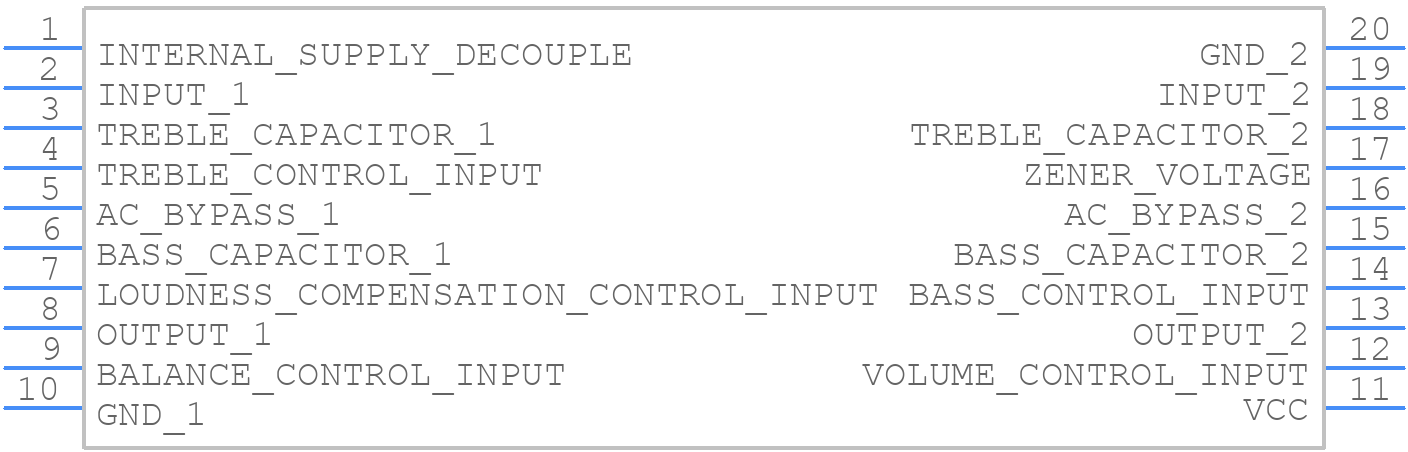

Use the download button to access the LM1036M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM103,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
