LM1036MX/NOPB - Texas Instruments

Description: Audio Amplifiers Dual DC Op Tone/ Volm/Balance Circuit

Download LM1036MX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

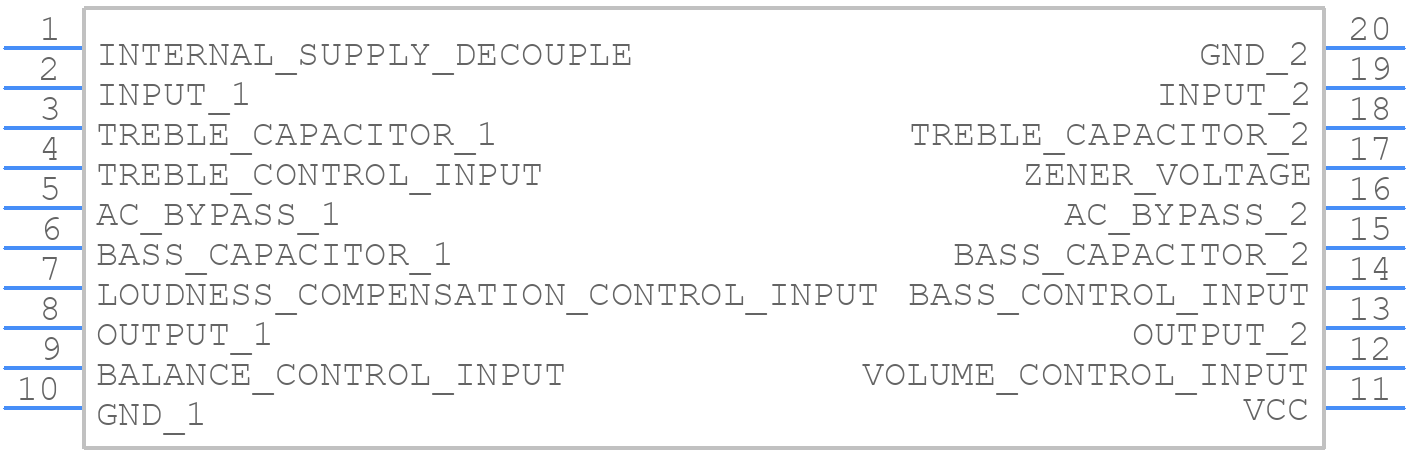

Symbol
LM1036MX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM1036MX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DW0020A
click to zoom
3D Models
LM1036MX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DW0020A
click to zoom

LM1036MX/NOPB Details

  • Manufacturer Part Number:

    LM1036MX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    TONE CONTROL CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP20,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max:

    45 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    9 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

LM1036MX/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LM1036MX/NOPB involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • Choose capacitors with low ESR (Equivalent Series Resistance) and high ripple current ratings. A minimum capacitance of 10uF is recommended for the input capacitor, and 22uF for the output capacitor.
  • The LM1036MX/NOPB can operate in an ambient temperature range of -40°C to 85°C, but the device's junction temperature should not exceed 150°C.
  • Yes, the LM1036MX/NOPB is qualified for automotive and high-reliability applications, but additional testing and validation may be required to meet specific industry standards.
  • Ensure that the input and output capacitors are properly sized, the PCB layout is well-designed, and the device is operated within its recommended operating conditions to prevent oscillation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM1036MX/NOPB Overview

Use the download button to access the LM1036MX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM103, or try a keyword search, such as Audio Control ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
